John Deere 5125R

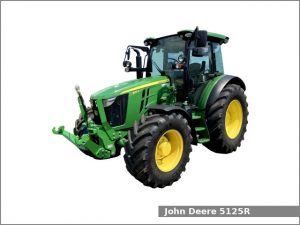

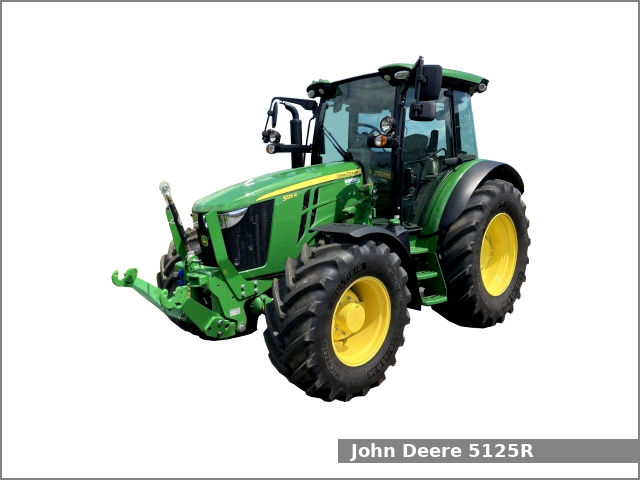

John Deere 5125RThe John Deere 5125R is a 4WD utility tractor from the 5R series. This tractor has been manufactured by John Deere in Augusta, Georgia, USA since 2017. The John Deere 5125R is equipped with a 4.5 L (276.4 cu·in) four-cylinder diesel engine and one of two transmissions: a four-speed power shift transmission with 16 forward and 16 reverse gears or a eight-speed power shift transmission with 32 forward and 16 reverse gears.

The JD 5125R utility tractor used the John Deere PowerTech PWX engine. It is a 4.5 L, 4,529 cm2, (276.4 cu·in) four-cylinder wastegate turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 126.8 PS (93.2 kW; 125.0 HP) at 2,200 rpm of output power.

The John Deere 5125R is equipped with power steering, hydraulic wet disc brakes, cab (standard) and 180.0 liters (47.6 US gal.; 39.6 Imp. gal) fuel tank.

Following attachments are available for the John Deere 5125R utility tractor:

  • John Deere 543R NSL loader
  • John Deere 603R NSL loader
  • John Deere 603R MSL loader
  • John Deere 603R HSL loader

John Deere 5125R Specifications

General Specifications
Model John Deere 5125R
Length 3,650 mm (143.7 in)
Width 2,150 mm (84.6 in)
Height 2,690 mm (105.9 in)
Wheel base 2,250 mm (88.6 in)
Weight (shipping) 4,300 kg (9,480 lbs)
Fuel tank capacity 180.0 liters (47.6 US gal.; 39.6 Imp. gal)
Battery 12V, CCA 550A
Cabin type Cab (standard)
Engine
Engine model John Deere PowerTech PWX
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.5 L, 4,529 cm2, (276.4 cu·in)
Bore and stroke 106.0 mm X 127.0 mm (4.17 in X 5 in)
Horsepower 126.8 PS (93.2 kW; 125.0 HP) at 2,200 rpm
Torque 534.1 N·m (54.5 kg·m, 393.6 ft·lb) at 1,500 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Hydraulic wet disc
Differential lock Electro-hydraulic rear
Limited-slip front
Electro-hydraulic front
Transmission model CommandQuad
Transmission type Four-speed power shift
Gears 16 forward and 16 reverse
Transmission model Command8
Transmission type Eight-speed power shift
Gears 32 forward and 16 reverse
Tires
Front tires Ag: 480/65R24
Rear tires Ag: 540/65R38
Three-Point Hitch
Category II
Control type Electronic lower-link draft sensing
Lift capacity (at 610 mm/24 in) 2,755 kg (6,075 lbs)
3,080 kg (6,790 lbs)
Front Hitch
Category II
Lift capacity (at ends) 2,855 kg (6290 lbs)
PTO (Power take-off shaft)
Front PTO type Independent with electro-hydraulic clutch
Front PTO speed 1000 rpm
Rear PTO type Independent with electro-hydraulic clutch
Rear PTO speed 540/540E/1000 rpm
Hydraulic system
Hydraulic type Open center or load-sensing pressure-flow compensated
Valves Rear: 4
Mid: 3
Pump flow 25.4 gpm (96.1 lpm)
30.9 gpm (117 lpm)
