John Deere 5220

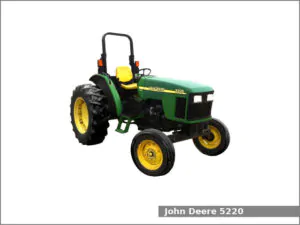

John Deere 5220The John Deere 5220 is a 2WD or 4WD utility tractor from the 5000 Twenty series. This tractor was manufactured by John Deere in Augusta, Georgia, USA from 2002 to 2004. The JD 5220 is equipped with a 2.9 L three-cylinder diesel engine and one of three transmissions: Collar shift, SyncShuttle or PowrReverser.

The John Deere 5220 utility tractor used the John Deere 3029D engine. It is a 2.9 L, 2,933 cm2, (179.0 cu·in) three-cylinder natural aspirated diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. This engine produced 53.7 PS (39.5 kW; 53.0 HP) at 2,400 rpm of maximum output power.

The John Deere 5220 is equipped with power steering, hydraulic wet disc brakes, ROPS with a straddle-mount platform (ROPS with an isolated platform (IOOS) or Cab was available as an option).

Following attachments are available for the John Deere 5220 utility tractor:

  • John Deere 510 loader
  • John Deere 521 loader
  • John Deere 541 loader
  • John Deere 49 backhoe

John Deere 5220 Specifications

General Specifications
Model John Deere 5220
Length 2WD with ROPS: 3,470 mm (136.6 in)
4WD with ROPS: 3,590 mm (141.6 in)
2WD with Cab: 3,540 mm (139.5 in)
4WD with Cab: 3,600 mm (142.0 in)
Width ROPS: 1,800 mm (70.9 in)
Cab: 1,760 mm (69.4 in)
Height ROPS: 2,380 mm (93.7 in)
IOOS: 2,580 mm (101.7 in)
Cab: 2,470 mm (97.5 in)
Wheel base ROPS: 2,040 mm (80.3 in)
2WD with Cab: 2,000 mm (79.0 in)
4WD with Cab: 2,030 mm (80.0 in)
Weight 2WD with ROPS: 1,620 kg (3,572 lbs)
4WD with ROPS: 2,090 kg (4,615 lbs)
2WD with IOOS ROPS: 1,760 kg (3,890 lbs)
4WD with IOOS ROPS: 2,240 kg (4,930 lbs)
2WD with Cab: 2,260 kg (4,990 lbs)
4WD with Cab: 2,735 kg (6,030 lbs)
Fuel tank capacity ROPS (early): 68.0 liters (18.0 US gal.; 15.0 Imp. gal)
ROPS (later): 75.7 liters (20.0 US gal.; 16.7 Imp. gal)
IOOS/Cab (small): 102.2 liters (27.0 US gal.; 22.5 Imp. gal)
IOOS/Cab (large): 111.7 liters (29.5 US gal.; 24.6 Imp. gal)
Battery 12V, CCA 700A (early), 950A (later)
Cabin type ROPS with straddle-mount platform or ROPS with isolated platform (IOOS) or Cab
Engine
Engine model John Deere 3029D
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 2.9 L, 2,933 cm2, (179.0 cu·in)
Bore and stroke 106.0 mm X 110.0 mm (4.17 in X 4.33 in)
Compression ratio 17.8:1
Horsepower 53.7 PS (39.5 kW; 53.0 HP) at 2,400 rpm
Torque 162.0 N·m (16.5 kg·m, 119.4 ft·lb) at 1,400 rpm
Starter Electric
Oil capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity: 9.5 L (10 US. qt, 8.4 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Hydraulic wet disc
Transmission model Collar Shift
Transmission type Collar shift with dry disc clutch
Gears 9 forward and 3 reverse
Speed Forward: 27.0 kmh (16.8 mph) Reverse: 23.2 (14.4 mph)
Transmission oil capacity 37.9 L (10 US. gal, 8.3 Imp. gal.)
Transmission model SyncShuttle
Transmission type Partially synchronized with dry disc clutch
Gears 9 forward and 3 reverse
Speed Forward: 27.0 kmh (16.8 mph) Reverse: 23.2 (14.4 mph)
Transmission oil capacity 37.9 L (10 US. gal, 8.3 Imp. gal.)
Transmission model PowrReverser
Transmission type Power shuttle with wet disc clutch
Gears 12 forward and 12 reverse
Speed Forward: 27.0 kmh (16.8 mph) Reverse: 31.4 (19.5 mph)
Transmission oil capacity 43.5 L (11.5 US. gal, 9.6 Imp. gal.)
Tires
Front tires Ag: 6.5-16
Rear tires Ag: 13.6-28
Three-Point Hitch
Caterogy II/I
Control type
Lift capacity (at 610 mm / 24 in) 1,530 kg (3,375 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540, 540/540E rpm
Hydraulic system
Hydraulic type Open center
Pressure 2,800 psi (193.0 bar)
Valves 2 to 3
Pump flow 11.4 gpm (43.2 lpm)
Steering flow 6.8 gpm (25.7 lpm)
Total flow 18.2 gpm (68.9 lpm)
