John Deere 5300

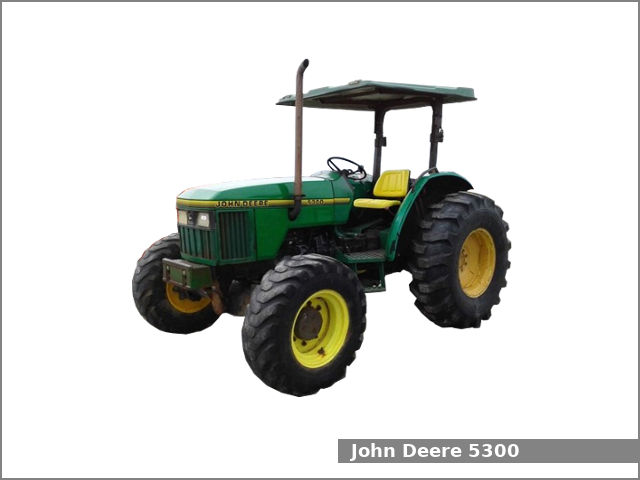

John Deere 5300The John Deere 5300 is a 2WD or 4WD utility tractor from the 5000 Utility series. This tractor was manufactured by John Deere in Augusta, Georgia, USA from 1992 to 1997. The John Deere 5300 is equipped with a 2.9 L (179.0 cu·in) three-cylinder diesel engine and one of three transmissions: an unsynchronized gear transmission with 9 forward and 3 reverse gears and dry disc clutch, a partially synchronized transmission with 9 forward and 3 reverse gears and dry disc clutch or a power shuttle transmission with 12 forward and 12 reverse gears and wet disc clutch.

The JD 5300 utility tractor used the John Deere engine. It is a 2.9 L, 2,933 cm2, (179.0 cu·in) three-cylinder natural aspirated diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. The compression ratio rating is 17.8:1. This engine produced 56.7 PS (41.7 kW; 55.9 HP) at 2,400 rpm of output power.

The John Deere 5300 is equipped with hydrostatic power steering, hydraulic wet disc brakes, two-post folding ROPS, or cab with air-conditioning (optional), and 68.1 liters (18 US gal.; 15 Imp. gal) fuel tank.

Following attachments are available for the JD 5300 utility tractor:

  • John Deere 520 (2WD) or 522 (4WD) loader
  • John Deere 540 (2WD) or 542 (4WD) loader

John Deere 5300 Specifications

General Specifications
Model John Deere 5300
Length 2WD: 3,130 mm (123.2 in)
4WD: 3,250 mm (128 in)
Width 1,690 mm (66.5 in)
Height (ROPS) 2,250 mm (88.6 in)
Wheel base 2,040 mm (80.3 in)
Ground clearance 2WD: 450 mm (17.7 in)
4WD: 370 mm (14.6 in)
Weight (operating) 2,270 kg (5,004 lbs)
Fuel tank capacity 68.1 liters (18 US gal.; 15 Imp. gal)
Battery 12V
Cabin type Two-post folding ROPS or Cab with air-conditioning (optional)
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 2.9 L, 2,933 cm2, (179.0 cu·in)
Bore and stroke 106.0 mm X 110.0 mm (4.17 in X 4.33 in)
Compression ratio 17.8:1
Horsepower 56.7 PS (41.7 kW; 55.9 HP) at 2,400 rpm
Starter Electric
Oil capacity: 6.0 L (6.3 US. qt, 5.3 Imp. qt.)
Coolant capacity: 9.5 L (10 US. qt, 8.4 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Hydraulic wet disc
Differential lock Mechanical standard
Transmission model John Deere Collar Shift
Transmission type Unsynchronized gear with dry disc clutch
Gears 9 forward and 3 reverse
Speed Forward: 26.1 kmh (16.2 mph) Reverse: 22.3 (13.9 mph)
Transmission model John Deere Top-Shaft Synchronized
Transmission type Partially synchronized with dry disc clutch
Gears 9 forward and 3 reverse
Speed Forward: 26.1 kmh (16.2 mph) Reverse: 22.3 (13.9 mph)
Transmission model John Deere TSS Reverser
Transmission type Power shuttle with wet disc clutch
Gears 12 forward and 12 reverse
Tires
Front tires Ag: 7.50-16 (2WD), 9.5-24 (4WD)
Rear tires Ag: 14.9-28
Three-Point Hitch
Category II/I
Control type Position control with top-link draft sensing
Lift capacity (at 610 mm/24 in) 1,530 kg (3,375 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Pressure 2750 psi (189.6 bar)
Valves 1 to 3
Pump flow 11.4 gpm (43.2 lpm)
Steering flow 6.8 gpm (25.7 lpm)
Total flow 18.2 gpm (68.9 lpm)
