John Deere 5303

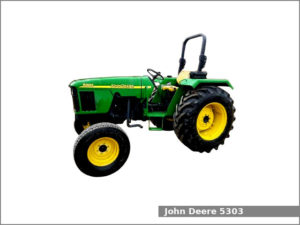

John Deere 5303The John Deere 5303 is a 2WD or 4WD utility tractor from the 5003 series. This tractor was manufactured by John Deere in Pune, Maharashtra, India from 2003 to 2008.

The JD 5303 is equipped with a 2.9 L (179.0 cu·in) three-cylinder diesel engine and one of two transmissions: the SyncReverser – a partially synchronized transmission with dry disc clutch and 9 forward and 3 reverse gears or the SyncShuttle – a partially synchronized transmission with dry disc clutch and 9 forward and 3 reverse gears.

The John Deere 5303 utility tractor used the John Deere engine. It is a 2.9 L, 2,933 cm2, (179.0 cu·in) three-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. This engine produced 64.9 PS (47.7 kW; 64.0 HP) at 2,400 rpm of output power.

The John Deere 5303 is equipped with hydrostatic power steering, differential wet disc brakes, foldable two-post ROPS, and 72.0 liters (19 US gal.; 15.8 Imp. gal) fuel tank.

John Deere 5303 Specifications

General Specifications
Model John Deere 5303
Length
Width
Height
Wheel base 2,040 mm (80.3 in)
Weight 2,250 kg (4,960 lbs)
Fuel tank capacity 72.0 liters (19 US gal.; 15.8 Imp. gal)
Battery 12V, CCA 623A
Cabin type Foldable two-post ROPS
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 2.9 L, 2,933 cm2, (179.0 cu·in)
Bore and stroke 106.0 mm X 110.0 mm (4.17 in X 4.33 in)
Horsepower 64.9 PS (47.7 kW; 64.0 HP) at 2,400 rpm
Starter Electric
Oil type SAE 10W-30, 10W-40
Oil capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity: 9.5 L (10 US. qt, 8.4 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Differential wet disc
Transmission model SyncReverser
Transmission type Partially synchronized with dry disc clutch
Gears 9 forward and 3 reverse
Speed Forward: 28.0 kmh (17.4 mph) Reverse: 21.7 (13.5 mph)
Transmission oil capacity 37.9 L (10 US. gal, 8.3 Imp. gal.)
Transmission model SyncShuttle
Transmission type Partially synchronized with dry disc clutch
Gears 9 forward and 3 reverse
Speed Forward: 28.0 kmh (17.4 mph) Reverse: 21.7 (13.5 mph)
Transmission oil capacity 37.9 L (10 US. gal, 8.3 Imp. gal.)
Tires
Front tires Ag: 7.5-16 (2WD), 9.5-24 (4WD)
Rear tires Ag: 16.9-28
Three-Point Hitch
Caterogy II/I
Control type
Lift capacity (at ends) 1,630 kg (3,595 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 37.9 L (40.05 US. qt, 33.35 Imp. qt.)
Pressure 2800 psi (193.1 bar)
Valves 1 or 2
Pump flow 9.5 gpm (36 lpm)
Steering flow 6.8 gpm (25.7 lpm)
Total flow 16.3 gpm (61.7 lpm)
