John Deere 5325

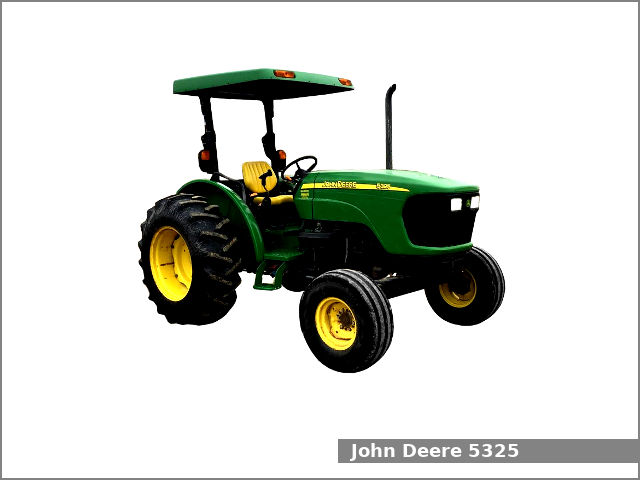

John Deere 5325The John Deere 5325 is a 2WD or 4WD utility tractor from the 5025 series. This tractor was manufactured by John Deere in Augusta, Georgia, USA from 2005 to 2008. The John Deere 5325 is equipped with a 3.0 L (186.0 cu·in) five-cylinder diesel engine and one of two transmissions: a partially synchronized transmission with 9 forward and 3 reverse gears and dry disc clutch or a power shuttle transmission with 12 forward and 12 reverse gears and wet disc clutch .

The JD 5325 utility tractor used the John Deere engine. It is a 3.1 L, 3,051 cm2, (186.1 cu·in) five-cylinder turbocharged diesel engine with 86.0 mm (3.39 in) of the cylinder bore and 105.0 mm (4.13 in) of the piston stroke. The compression ratio rating is 20.5:1. This engine produced 68 PS (50.0 kW; 67.0 HP) at 2,400 rpm of output power.

The John Deere 5325 is equipped with hydrostatic power steering, differential hydraulic wet disc brakes, ROPS with a straddle-mount platform, ROPS with an isolated platform (IOOS) or cab.

John Deere 5325 Specifications

General Specifications
Model John Deere 5325
Length
Width
Height
Wheel base 2,170 mm (85.4 in)
Weight (shipping) 2WD straddle: 2,425 kg (5,345 lbs)
4WD straddle: 2,690 kg (5,930 lbs)
2WD IOOS: 2,485 kg (5,485 lbs)
4WD IOOS: 2,735 kg (6,030 lbs)
2WD Cab: 2,720 kg (5,995 lbs)
4WD Cab: 2,985 kg (6,580 lbs)
Fuel tank capacity Straddle: 94.6 liters (25 US gal.; 20.8 Imp. gal)
IOOS/Cab: 126.8 liters (33.5 US gal.; 27.9 Imp. gal)
Battery 12V, CCA 950A, Group BCI 31
Cabin type ROPS with straddle-mount platform, ROPS with isolated platform (IOOS) or Cab
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 5
Fuel type Diesel
Displacement 3.1 L, 3,051 cm2, (186.1 cu·in)
Bore and stroke 86.0 mm X 105.0 mm (3.39 in X 4.13 in)
Compression ratio 20.5:1
Horsepower 68 PS (50.0 kW; 67.1 HP) at 2,400 rpm
Starter Electric
Oil capacity: 10.4 L (11 US. qt, 9.2 Imp. qt.)
Coolant capacity: 9.5 L (10 US. qt, 8.4 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Differential hydraulic wet disc
Transmission model John Deere SyncShuttle
Transmission type Partially synchronized with dry disc clutch
Gears 9 forward and 3 reverse
Speed Forward: 31.9 kmh (19.8 mph) Reverse: 24.7 (15.4 mph)
Transmission oil capacity 39.0 L (10.3 US. gal, 8.6 Imp. gal.)
Transmission model John Deere PowrReverser
Transmission type Power shuttle with wet disc clutch
Gears 12 forward and 12 reverse
Speed Forward: 36.0 kmh (22.4 mph) Reverse: 39.2 (24.4 mph)
Transmission oil capacity 43.5 L (11.5 US. gal, 9.6 Imp. gal.)
Tires
Front tires Ag: 7.50-16
Rear tires Ag: 14.9-28
Three-Point Hitch
Category II/I
Control type
Lift capacity (at 610 mm/24 in) 1,530 kg (3,375 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540, 540/1000 rpm
Hydraulic system
Hydraulic type Open center
Valves 6
