John Deere 5400

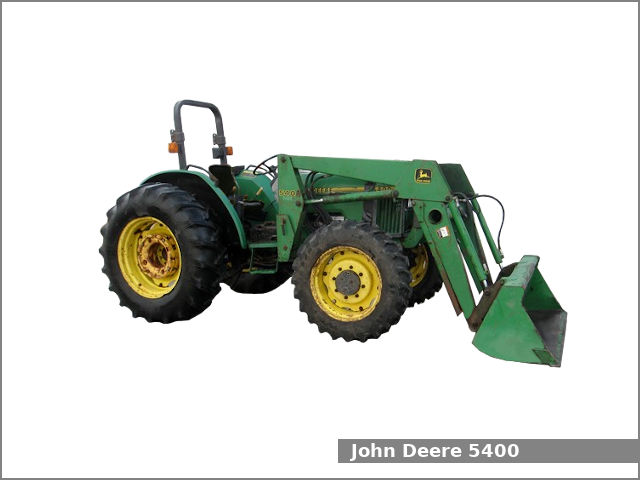

John Deere 5400The John Deere 5400 is a 2WD or 4WD utility tractor from the 5000 Utility series. This tractor was manufactured by John Deere in Augusta, Georgia, USA from 1992 to 1997. The JD 5400 is equipped with a 2.9 L (179.0 cu·in) three-cylinder diesel engine and one of three transmissions: an unsynchronized gear transmission with 9 forward and 3 reverse gears, a partially synchronized transmission with 9 forward and 3 reverse gears or a power shuttle transmission with 12 forward and 12 reverse gears.

The John Deere 5400 utility tractor used the John Deere engine. It is a 2.9 L, 2,933 cm2, (179.0 cu·in) three-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. The compression ratio rating is 17.8:1. This engine produced 69.4 PS (51.0 kW; 68.4 HP) at 2,400 rpm of output power.

The JD 5400 is equipped with hydrostatic power steering, differential hydraulic wet disc brakes, two-post folding ROPS or cab with air-conditioning (optional), and 68.1 liters (18 US gal.; 15 Imp. gal) fuel tank.

Following attachments are available for the JD 5400 utility tractor:

  • John Deere 520 loader
  • John Deere 540 loader

John Deere 5400 Specifications

General Specifications
Model John Deere 5400
Length 2WD: 3,190 mm (125.6 in)
4WD: 3,300 mm (129.9 in)
Width 1,740 mm (68.5 in)
Height ROPS: 2,310 mm (90.9 in)
Wheel base 2,040 mm (80.3 in)
Ground clearance (front axle) 2WD: 460 mm (18.1 in)
4WD: 470 mm (18.5 in)
Weight (operating) 4WD ROPS: 2,320 kg (5,115 lbs)
Fuel tank capacity 68.1 liters (18 US gal.; 15 Imp. gal)
Battery 12V
Cabin type Two-post folding ROPS or Cab with air-conditioning (optional)
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 3
Fuel type Diesel
Displacement 2.9 L, 2,933 cm2, (179.0 cu·in)
Bore and stroke 106.0 mm X 110.0 mm (4.17 in X 4.33 in)
Compression ratio 17.8:1
Horsepower 69.4 PS (51.0 kW; 68.4 HP) at 2,400 rpm
Starter Electric
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD (optional)
Steering type Hydrostatic power
Brakes Differential hydraulic wet disc
Differential lock Mechanical standard
Transmission model John Deere Collar Shift
Transmission type Unsynchronized gear with dry disc clutch
Gears 9 forward and 3 reverse
Speed Forward: 27.1 kmh (16.8 mph) Reverse: 23.2 kmh (14.4 mph)
Transmission model John Deere Top-Shaft Synchronized
Transmission type Partially synchronized with dry disc clutch
Gears 9 forward and 3 reverse
Speed Forward: 27.1 kmh (16.8 mph) Reverse: 23.2 kmh (14.4 mph)
Transmission model John Deere TSS Reverser with wet disc clutch
Transmission type Power shuttle
Gears 12 forward and 12 reverse
Tires
Front tires Ag: 7.50-16 (2WD), 11.2-24 (4WD)
Rear tires Ag: 16.9-30
Three-Point Hitch
Category II/I
Control type Position control with top-link draft sensing
Lift capacity (at 610 mm/ 24 in) 1,530 kg (3,375 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Pressure 2750 psi (189.6 bar)
Valves 1 to 3
Pump flow 11.4 gpm (43.2 lpm)
Steering flow 6.8 gpm (25.7 lpm)
Total flow 18.2 gpm (68.9 lpm)
