John Deere 5425

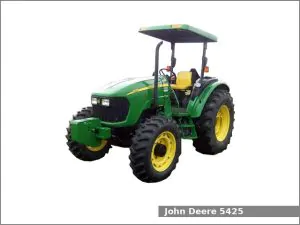

John Deere 5425The John Deere 5425 is a 2WD or 4WD utility tractor from the 5025 series. This tractor was manufactured by John Deere in Augusta, Georgia, USA from 2005 to 2008. The John Deere 5425 is equipped with a 4.5 L (276.0 cu·in) four-cylinder diesel engine and one of two transmissions: a partially synchronized transmission with 9 forward and 3 reverse gears or a power shuttle transmission with 12 forward and 12 reverse gears.

The JD 5425 utility tractor used the John Deere 4045D engine. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder natural aspirated diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.0:1. This engine produced 82.1 PS (60.4 kW; 81.0 HP) at 2,400 rpm of output power.

The John Deere 5425 is equipped with hydrostatic power steering, differential hydraulic wet disc brakes, ROPS with a straddle-mount platform, ROPS with an isolated platform (IOOS), or a cab.

John Deere 5425 Specifications

General Specifications
Model John Deere 5425
Length
Width
Height
Wheel base 2,170 mm (85.4 in)
Weight (shipping) 2WD straddle: 2,620 kg (5,776 lbs)
4WD straddle: 2,838 kg (6,257 lbs)
Fuel tank capacity Straddle: 94.6 liters (25.0 US gal.; 20.8 Imp. gal)
IOOS/Cab: 126.8 liters (33.5 US gal, 27.9 Imp. gal)
Battery 12V, CCA 750A, Group BCI 31
Cabin type ROPS with straddle-mount platform, ROPS with isolated platform (IOOS) or Cab
Engine
Engine model John Deere 4045D
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke 106.0 mm X 127.0 mm (4.17 in X 5 in)
Compression ratio 17.0:1
Horsepower 82.1 PS (60.4 kW; 81 HP) at 2,400 rpm
Torque 291.7 N·m (29.7 kg·m, 215 ft·lb) at rpm
Starter Electric
Oil capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity: 11.4 L (12 US. qt, 10 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD (optional)
Steering type Hydrostatic power
Brakes Differential hydraulic wet disc
Transmission model John Deere SyncShuttle
Transmission type Partially synchronized with dry disc clutch
Gears 9 forward and 3 reverse
Speed Forward: 31.9 kmh (19.8 mph) Reverse: 24.7 kmh (15.4 mph)
Transmission oil capacity 39.0 L (10.3 US. gal, 8.6 Imp. gal.)
Transmission model John Deere PowrReverser
Transmission type Power shuttle with wet disc clutch
Gears 12 forward and 12 reverse
Speed Forward: 36.0 kmh (22.4 mph) Reverse: 39.2 kmh (24.4 mph)
Transmission oil capacity 43.5 L (11.5 US. gal, 9.6 Imp. gal.)
Tires
Front tires Ag: 7.50-16
Rear tires Ag: 16.9-30
Three-Point Hitch
Category II/I
Control type
Lift capacity (at 610 mm/ 24 in) 1530 kg (3374 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540, 1000 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 9-speed: 39.0 L (10.3 US. gal, 8.6 Imp. gal.)
12-speed: 43.5 L (11.5 US. gal, 9.6 Imp. gal.)
Valves 6
