John Deere 5500

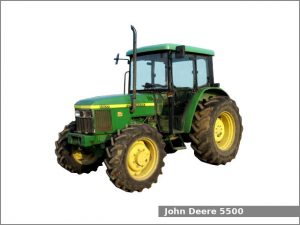

John Deere 5500The John Deere 5500 is a 2WD or 4WD utility tractor from the 5000 Utility series. This tractor was manufactured by John Deere in Augusta, Georgia, USA from 1996 to 1997. The John Deere 5500 is equipped with a 3.9 L (239.0 cu·in) four-cylinder diesel engine and one of three transmissions: an unsynchronized gear transmission with 9 forward and 3 reverse gears, a partially synchronized transmission with 9 forward and 3 reverse gears or a power shuttle transmission with 12 forward and 12 reverse gears.

The JD 5500 utility tractor used the John Deere engine. It is a 3.9 L, 3,916 cm2, (239.0 cu·in) four-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. The compression ratio rating is 17.8:1. This engine produced 84.3 PS (62.0 kW; 83.1 HP) at 2,400 rpm of output power.

The John Deere 5500 is equipped with hydrostatic power steering, differential hydraulic wet disc brakes, two-post folding ROPS or Cab (optional), and 87.1 liters (23 US gal.; 19.2 Imp. gal) fuel tank.

Following attachments are available for the John Deere 5500 utility tractor:

  • John Deere 520 loader
  • John Deere 540 loader
  • John Deere 540 MSL loader

John Deere 5500 Specifications

General Specifications
Model John Deere 5500
Length 3,510 mm (138.2 in)
Width 1,740 mm (68.5 in)
Height 2,480 mm (97.6 in)
Wheel base 2,170 mm (85.4 in)
Ground clearance (front axle) 2WD: 460 mm (18.1 in)
4WD: 390 mm (15.4 in)
Weight
Fuel tank capacity 87.1 liters (23 US gal.; 19.2 Imp. gal)
Battery 12V`
Cabin type Two-post folding ROPS or Cab (optional)
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 3.9 L, 3,916 cm2, (239.0 cu·in)
Bore and stroke 106.0 mm X 110.0 mm (4.17 in X 4.33 in)
Compression ratio 17.8:1
Horsepower 84.3 PS (62.0 kW; 83.1 HP) at 2,400 rpm
Starter Electric
Oil capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity: ROPS: 11.9 L (12.6 US. qt, 10.5 Imp. qt.)
Cab: 13.0 L (13.7 US. qt, 11.4 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD (optional)
Steering type Hydrostatic power
Brakes Differential hydraulic wet disc
Differential lock Mechanical standard
Transmission model John Deere Collar Shift
Transmission type Unsynchronized gear with dry disc clutch
Gears 9 forward and 3 reverse
Speed Forward: 27.1 kmh (16.8 mph) Reverse: 23.2 kmh (14.4 mph)
Transmission model John Deere Top-Shaft Synchronized
Transmission type Partially synchronized with dry disc clutch
Gears 9 forward and 3 reverse
Speed Forward: 27.1 kmh (16.8 mph) Reverse: 23.2 kmh (14.4 mph)
Transmission model John Deere TSS Reverser
Transmission type Power shuttle with wet disc clutch
Gears 12 forward and 12 reverse
Tires
Front tires Ag: 7.50-16 (2WD), 11.2-24 (4WD)
Rear tires Ag: 16.9-30
Three-Point Hitch
Category II/I
Control type Position control with top-link draft sensing
Lift capacity (at 610 mm/ 24 in) 1,530 kg (3,375 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Open center
Pressure 2750 psi (189.6 bar)
Valves 1 to 3
Pump flow 16.4 gpm (62.1 lpm)
Steering flow 6.8 gpm (25.7 lpm)
Total flow 23.2 gpm (87.8 lpm)
