John Deere 5510

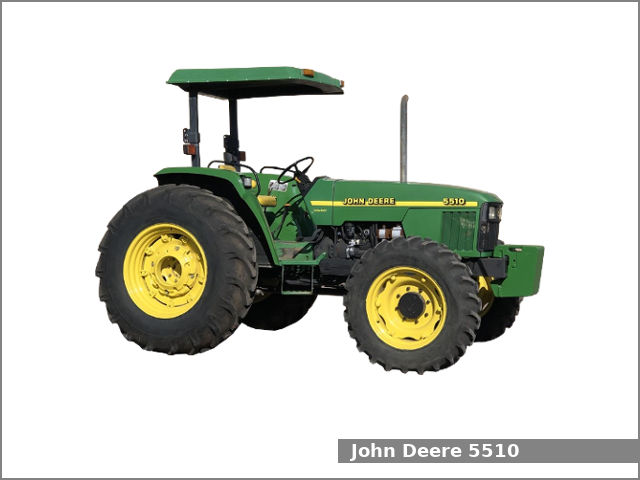

John Deere 5510The John Deere 5510 is a 2WD or 4WD utility tractor from the 5000 Ten series. This tractor was manufactured by John Deere in Augusta, Georgia, USA from 1998 to 2001. The John Deere 5510 is equipped with a 4.5 L (276.0 cu·in) four-cylinder diesel engine and one of three transmissions: unsynchronized gear transmission with 9 forward and 3 reverse gears, a partially synchronized transmission with 9 forward and 3 reverse gears or a power shuttle transmission with 12 forward and 12 reverse gears.

The JD 5510 utility tractor used the John Deere 4045T engine. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.0:1. This engine produced 90.3 PS (66.4 kW; 89.0 HP) at 2,400 rpm of output power.

The John Deere 5510 is equipped with power steering, hydraulic wet disc brakes, two-post ROPS or cab (optional), and 87.1 liters (23 US gal.; 19.2 Imp. gal) fuel tank.

Following attachments are available for the John Deere 5510 utility tractor:

  • John Deere 521 loader
  • John Deere 541 loader
  • John Deere 541 Self-Leveling loader
  • John Deere 49 backhoe

John Deere 5510 Specifications

General Specifications
Model John Deere 5510
Length 3,510 mm (138.2 in)
Width 1,740 mm (68.5 in)
Height ROPS: 2,480 mm (97.6 in)
Cab: 2,550 mm (100.4 in)
Wheel base
Ground clearance 2WD: 460 mm (18.1 in)
4WD: 390 mm (15.4 in)
Weight (shipping) 2WD ROPS: 2,594 kg (5,720 lbs)
2WD Cab: 3,050 kg (6,724 lbs)
4WD ROPS: 2,785 kg (6,140 lbs)
4WD Cab: 3,240 kg (7,140 lbs)
Fuel tank capacity 87.1 liters (23 US gal.; 19.2 Imp. gal)
Battery 12V, CCA 700A
Cabin type Two-post ROPS or Cab (optional)
Engine
Engine model John Deere 4045T
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke 106.0 mm X 127.0 mm (4.17 in X 5 in)
Compression ratio 17.0:1
Horsepower 90.3 PS (66.4 kW; 89.0 HP) at 2,400 rpm
Torque 308.1 N·m (31.4 kg·m, 227.1 ft·lb) at 1,400 rpm
Starter Electric
Oil type SAE 10W-30
Oil capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity: 10.8 L (11.4 US. qt, 9.5 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Hydraulic wet disc
Transmission model CollarShift
Transmission type Unsynchronized gear with dry disc clutch
Gears 9 forward and 3 reverse
Speed Forward: 27.0 kmh (16.8 mph) Reverse: 23.1 kmh (14.4 mph)
Transmission oil capacity 37.9 L (10 US. gal, 8.3 Imp. gal.)
Transmission model SyncShuttle
Transmission type Partially synchronized with dry disc clutch
Gears 9 forward and 3 reverse
Speed Forward: 27.0 kmh (16.8 mph) Reverse: 23.1 kmh (14.4 mph)
Transmission oil capacity 37.9 L (10 US. gal, 8.3 Imp. gal.)
Transmission model PowrReverser
Transmission type Power shuttle with wet disc clutch
Gears 12 forward and 12 reverse
Speed Forward: 28.9 kmh (18 mph) Reverse: 31.1 kmh (19.3 mph)
Transmission oil capacity 43.5 L (11.5 US. gal, 9.6 Imp. gal.)
Tires
Front tires Ag: 7.50-16 (2WD), 11.2-24 (4WD)
Rear tires Ag: 16.9-30
Three-Point Hitch
Category II/I
Control type
Lift capacity (at 610 mm/24 in) 1,530 kg (3,375 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540 or 540/540E (SyncShuttle) rpm
Hydraulic system
Hydraulic type Open center
Pressure 2855 psi (196.8 bar)
Valves 5
Pump flow 16.4 gpm (62.1 lpm)
Steering flow 6.6 gpm (25 lpm)
Total flow 23.0 gpm (87.1 lpm)
