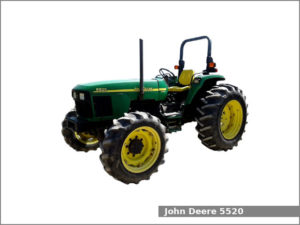

John Deere 5520The John Deere 5520 is a 2WD or 4WD utility tractor from the 5000 Twenty series. This tractor was manufactured by John Deere in Augusta, Georgia, USA from 2002 to 2004. The John Deere 5520 is equipped with a 4.5 L (276.0 cu·in) four-cylinder diesel engine and one of three transmissions: a collar shift transmission with dry disc clutch and 9 forward and 3 reverse gears, a partially synchronized transmission with dry disc clutch and 9 forward and 3 reverse gears or a power shuttle transmission with wet disc clutch and 12 forward and 12 reverse gears.

The JD 5520 utility tractor used the John Deere 4045D engine. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.0:1. This engine produced 90.3 PS (66.4 kW; 89.0 HP) at 2,400 rpm of output power.

The John Deere 5520 is equipped with hydrostatic power steering, hydraulic wet disc brakes, ROPS with a straddle-mount platform, ROPS with an isolated platform (IOOS) or Cab.

Following attachments are available for the John Deere 5520 utility tractor:

  • John Deere 521 loader
  • John Deere 541 loader
  • John Deere 49 backhoe

John Deere 5520 Specifications

General Specifications
Model John Deere 5520
Length ROPS: 3,840 mm (151.2 in)
2WD Cab: 3,370 mm (145.5 in)
4WD Cab: 3,750 mm (148.0 in)
Width ROPS: 1,880 mm (74.0 in)
Cab: 1,960 mm (77.3 in)
Height ROPS: 2,450 mm (96.5 in)
IOOS: 2,650 mm (104.6 in)
Cab: 2,550 mm (100.4 in)
Wheel base ROPS: 2,170 mm (85.4 in)
2WD Cab: 2,150 mm (85.0 in)
4WD Cab: 2,180 mm (86.0 in)
Ground clearance 2WD: 470 mm (18.5 in)
4WD: 440 mm (17.7 in)
Weight 2WD Straddle: 2,180 kg (4,805 lbs)
4WD Straddle: 2,655 kg (5,850 lbs)
2WD IOOS: 2,325 kg (5,125 lbs)
4WD IOOS: 2,795 kg (6,165 lbs)
2WD Cab: 2,825 kg (6,225 lbs)
4WD Cab: 3,295 kg (7,265 lbs)
Fuel tank capacity ROPS (early): 83.3 liters (22 US gal.; 18.3 Imp. gal)
ROPS (late): 94.6 liters (25 US gal, 20.8 Imp. gal)
IOOS/Cab (small): 102.2 liters (27 US gal, 22.5 Imp. gal)
IOOS/Cab (large): 111.7 liters (29.5 US gal, 24.6 Imp. gal)
Battery 12V, CCA: 700A (early) or 950A (late)
Cabin type ROPS with straddle-mount platform, ROPS with isolated platform (IOOS) or Cab
Engine
Engine model John Deere 4045D
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke 106.0 mm X 127.0 mm (4.17 in X 5 in)
Compression ratio 17.0:1
Horsepower 90.3 PS (66.4 kW; 89.0 HP) at 2,400 rpm
Torque 308.1 N·m (31.4 kg·m, 227.1 ft·lb) at 1,500 rpm
Starter Electric
Oil capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity: 10.8 L (11.4 US. qt, 9.5 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Hydraulic wet disc
Transmission model John Deere
Transmission type Collar shift with dry disc clutch
Gears 9 forward and 3 reverse
Speed Forward: 27.0 kmh (16.8 mph) Reverse: 23.2 (14.4 mph)
Transmission oil capacity 37.9 L (10 US. gal, 8.3 Imp. gal.)
Transmission model John Deere SyncShuttle
Transmission type Partially synchronized with dry disc clutch
Gears 9 forward and 3 reverse
Speed Forward: 27.0 kmh (16.8 mph) Reverse: 23.2 (14.4 mph)
Transmission oil capacity 37.9 L (10 US. gal, 8.3 Imp. gal.)
Transmission model John Deere PowrReverser
Transmission type Power shuttle with wet disc clutch
Gears 12 forward and 12 reverse
Speed Forward: 27.0 kmh (16.8 mph) Reverse: 31.4 (19.5 mph)
Transmission oil capacity 43.5 L (11.5 US. gal, 9.6 Imp. gal.)
Tires
Front tires Ag: 7.50-16
Rear tires Ag: 16.9-30
Three-Point Hitch
Caterogy II/I
Control type
Lift capacity (at 610 mm / 24 in) 1,530 kg (3,375 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540, 540/540E rpm
Hydraulic system
Hydraulic type Open center
Pressure 2800 psi (193.1 bar)
Valves 2 to 3
Pump flow 15.9 gpm (60.2 lpm)
Steering flow 6.6 gpm (25 lpm)
Total flow 22.5 gpm (85.2 lpm)
