John Deere 5603

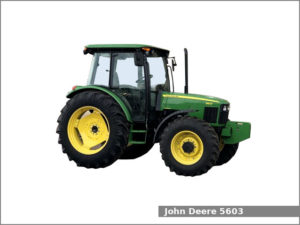

John Deere 5603The John Deere 5603 is a 4WD utility tractor manufactured by John Deere in Augusta, Georgia, USA from 2007 to 2008. The John Deere 5603 is equipped with a 4.5 L (276.0 cu·in) four-cylinder diesel engine and a power shuttle transmission with 12 forward and 12 reverse gears and wet disc clutch.

The JD 5603 utility tractor used the John Deere PowerTech 4045 engine. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5.0 in) of the piston stroke. The compression ratio rating is 17.0:1. This engine produced 100.4 PS (73.8 kW; 99.0 HP) at 2,400 rpm of output power.

The John Deere 5603 is equipped with hydrostatic power steering, wet disc brakes, cab (standard), and 126.8 liters (33.5 US gal.; 27.9 Imp. gal) fuel tank.

John Deere 5603 Specifications

General Specifications
Model John Deere 5603
Length
Width
Height
Wheel base 2,170 mm (85.4 in)
Ground clearance 400 mm (15.7 in)
Weight (operating) 3,240 kg (7,143 lbs)
Fuel tank capacity 126.8 liters (33.5 US gal.; 27.9 Imp. gal)
Battery 12V, CCA 750A, Group 31
Cabin type Cab (standard)
Engine
Engine model John Deere PowerTech 4045
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke 106.0 mm X 127.0 mm (4.17 in X 5.0 in)
Compression ratio 17.0:1
Horsepower 100.4 PS (73.8 kW; 99.0 HP) at 2,400 rpm
Starter Electric
Oil capacity: 8.5 L (9 US. qt, 7.5 Imp. qt.)
Coolant capacity: 11.4 L (12 US. qt, 10 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Wet disc
Transmission model PowrReverser
Transmission type Power shuttle with wet disc clutch
Gears 12 forward and 12 reverse
Speed Forward: 37.4 kmh (23.2 mph) Reverse: 40.8 (25.4 mph)
Transmission oil capacity 43.5 L (11.5 US. gal, 9.6 Imp. gal.)
Tires
Front tires Ag: 12.4-24
Rear tires Ag: 18.4-30
Three-Point Hitch
Category II/I
Control type
Lift capacity (at 610 mm/24 in) 1,530 kg (3,375 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/540E, 540/1000 rpm
Hydraulic system
Hydraulic type Open center
Hydraulic capacity 43.5 L (11.5 US. gal, 9.6 Imp. gal.)
Valves 1 to 3
Pump flow 15.9 gpm (60.2 lpm)
Total flow 22.5 gpm (85.2 lpm)
