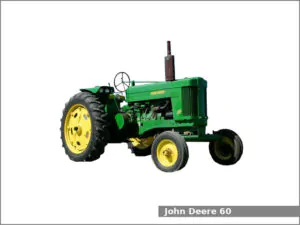

John Deere 60

John Deere 60The John Deere 60 is a 2WD row-crop tractor manufactured by John Deere in Waterloo, Iowa, USA from 1952 to 1956. The John Deere 60 is equipped with a 5.3 L (321.0 cu·in) two-cylinder engine and a unsynchronized gear with dry disc clutch transmission with 6 forward and 1 reverse gears.

The John Deere 60 row-crop tractor used the John Deere engine. It is a 5.3 L, 5,260 cm2, (321.0 cu·in) two-cylinder natural aspirated engine with 140.0 mm (5.51 in) of the cylinder bore and 171.0 mm (6.73 in) of the piston stroke. This engine was available in three versions for gasoline, all-fuel, or LP-gas. The compression ratio rating is 6.0:1 for the gasoline version, 4.7:1 for the all-fuel, or 7.3:1 for the LP-gas version. This engine produced 46.6 PS (34.3 kW; 46.0 HP) at 975 rpm of output power.

The JD 60 is equipped with manual or power (optional) steering, differential mechanical expanding shoe brakes, an open operator station, and 77.6 liters (20.5 US gal.; 17.1 Imp. gal) fuel tank for gasoline and all fuel versions, or 106.0 liters (28.0 US gal.; 23.3 Imp. gal) for LP-gas.

John Deere 60 Specifications

General Specifications
Model John Deere 60
Length 3,530 mm (139 in)
Width 2,200 mm (86.6 in)
Height Hood: 1,660 mm (65.4 in)
Exhaust: 2,130 mm (83.9 in)
Wheel base 2,280 mm (89.8 in)
Weight (operating) 2,630 kg (5,798 lbs)
Fuel tank capacity 77.6 liters (20.5 US gal.; 17.1 Imp. gal)
LP-gas: 106.0 liters (28.0 US gal.; 23.3 Imp. gal)
Battery Two 6V
Cabin type Open operator station
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 2
Fuel type Gasoline/All-fuel/LP-gas
Displacement 5.3 L, 5,260 cm2, (321.0 cu·in)
Bore and stroke 140.0 mm X 171.0 mm (5.51 in X 6.73 in)
Compression ratio Gasoline: 6.0:1
All-fuel: 4.7:1
LP-gas: 7.3:1
Horsepower 46.6 PS (34.3 kW; 46.0 HP) at 975 rpm
Starter Electric
Oil capacity: 7.6 L (8 US. qt, 6.7 Imp. qt.)
Coolant capacity: 31.2 L (33 US. qt, 27.5 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD
Steering type Manual or power (optional)
Brakes Differential mechanical expanding shoe
Transmission model John Deere
Transmission type Unsynchronized gear with dry disc clutch
Gears 6 forward and 1 reverse
Speed Forward: 17.7 kmh (11.0 mph) Reverse: 4.8 kmh (3.0 mph)
Tires
Front tires Ag: 6.00-16, 7.50-16, 9.00-10
Rear tires Ag: 11-38, 12-38, 9-42, 11-42
Three-Point Hitch
Type John Deere 800
Control type
Lift capacity (at ends)
PTO (Power take-off shaft)
Rear PTO type Transmission or independent (optional)
Rear PTO speed 540 rpm
Hydraulic system
Hydraulic type Powr-Trol
Hydraulic capacity 5.7 L (1.5 US. gal, 1.3 Imp. gal.)
Pressure 930 psi (64.1 bar)
Valves 1
Pump flow 8.9 gpm (33.7 lpm)
