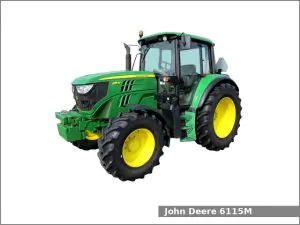

John Deere 6115M

John Deere 6115MThe John Deere 6115M is a 2WD or 4WD utility tractor from the 6M series. This tractor was manufactured by John Deere in Mannheim, Baden-Württemberg, Germany from 2013 to 2015. The John Deere 6115M is equipped with a 4.5 L (276.0 cu·in) four-cylinder diesel engine and one of four transmission variants.

The JD 6115M utility tractor used the John Deere PowerTech PVX engine. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder variable geometry turbocharged with intercooler diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 16.1:1. This engine produced 116.7 PS (85.8 kW; 115.0 HP) at 2,100 rpm of output power and 518.0 N·m (52.8 kg·m, 381.8 ft·lb) at 1,600 rpm of torque.

The John Deere 6115M is equipped with hydrostatic power steering, hydraulic wet disc brakes, two-post foldable ROPS or cab (optional) and 219.5 liters (58 US gal.; 48.3 Imp. gal) fuel tank.

Following attachments are available for the JD 6115M utility tractor:

  • John Deere H310 loader
  • John Deere H310 MSL loader
  • John Deere H340 loader
  • John Deere H340 MSL loader

John Deere 6115M Specifications

General Specifications
Model John Deere 6115M
Length
Width
Height
Wheel base 2,580 mm (101.6 in)
Ground clearance (front axle) 510 mm (20.1 in)
Weight 5,210 kg (11,486 lbs)
Fuel tank capacity 219.5 liters (58 US gal.; 48.3 Imp. gal)
Battery 12V
Cabin type Two-post foldable ROPS or cab (optional)
Engine
Engine model John Deere PowerTech PVX
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke 106.0 mm X 127.0 mm (4.17 in X 5 in)
Compression ratio 16.1:1
Horsepower 116.7 PS (85.8 kW; 115.0 HP) at 2,100 rpm
Torque 518.0 N·m (52.8 kg·m, 381.8 ft·lb) at 1,600 rpm
Starter Electric
Oil capacity: 16.0 L (16.9 US. qt, 14.1 Imp. qt.)
Coolant capacity: 22.1 L (23.4 US. qt, 19.4 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Hydraulic wet disc
Differential lock Electro-hydraulic rear, limit-slip front (4WD)
Transmission model SyncroPlus
Transmission type Fully synchronized with wet disc clutch
Gears 12 forward and 4 reverse
Transmission model PowrQuad
Transmission type Partial power shift with wet disc clutch
Gears 16 forward and 16 reverse
Transmission oil capacity 52.1 L (13.8 US. gal, 11.5 Imp. gal.)
Transmission model PowrQuad Plus
Transmission type Partial power shift with wet disc clutch
Gears 24 forward and 24 reverse
Transmission oil capacity 52.1 L (13.8 US. gal, 11.5 Imp. gal.)
Transmission model AutoQuad Plus
Transmission type Partial power shift with wet disc clutch
Gears 24 forward and 24 reverse
Transmission oil capacity 52.1 L (13.8 US. gal, 11.5 Imp. gal.)
Tires
Front tires Ag: 10.00-16 (2WD), 380/85R24 (4WD)
Rear tires Ag: 460/85R34
Three-Point Hitch
Category II/IIIN
Control type Electrohydraulic load sensing
Lift capacity (at 610 mm/24 in) 2,337 kg (5,153 lbs)
Optional: 2,833 kg (6,247 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1000 rpm
Hydraulic system
Hydraulic type Open center pressure compensated
Closed center load sensing pressure and flow compensated (optional)
Hydraulic capacity 51.9 L (13.7 US. gal, 11.4 Imp. gal.)
Pressure 2900 psi (199.9 bar)
Valves Rear: 1 to 3
Middle: 2 or 3 (optional)
Pump flow 21.1 gpm (79.9 lpm)
Optional: 30.0 gpm (113.6 lpm)
SCV flow 21.1 gpm (79.9 lpm)
