John Deere 6120

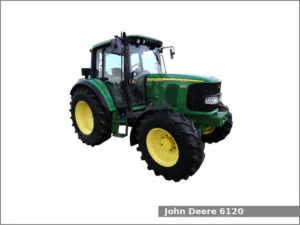

John Deere 6120The John Deere 6120 is a 2WD/4WD utility tractor manufactured by John Deere in Mannheim, Baden-Württemberg, Germany from 2002 to 2007.

The John Deere 6120 is equipped with one of two engines: a 4.6 L (276.0 cu·in) four-cylinder diesel engine (Tier I) or a 4.6 L (276.0 cu·in) four-cylinder diesel engine (Tier II) and one of four transmissions: a fully synchronized transmission with 12 forward and 4 reverse gears, a power shuttle transmission with 16 forward and 16 reverse gears, a partial power shift transmission with 16 forward and 16 reverse gears or a partial power shift transmission with 24 forward and 24 reverse gears.

The tractor could be equipped with the following engines:

  • John Deere PowerTech 4045TL070 (Tier I). It is a 4.6 L, 4,523 cm2, (276.0 cu·in) four-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 81.2 PS (59.7 kW; 80.0 HP) at 2,300 rpm of output power and 264.4 N·m (27 kg·m, 194.9 ft·lb) at 1,500 rpm of torque.
  • John Deere PowerTech 4045TL271 (Tier II). It is a 4.6 L, 4,523 cm2, (276.0 cu·in) four-cylinder turbocharged diesel engine. The cylinder bore is 106.0 mm (4.17 in) and the piston stroke is 127.0 mm (5 in). This engine produced 81.2 PS (59.7 kW; 80.0 HP) at 2,300 rpm of output power and 347.1 N·m (35.4 kg·m, 255.8 ft·lb) at 1,500 rpm of torque.

The JD 6120 is equipped with hydrostatic power steering, hydraulic wet disc brakes, two-post ROPS or ConfortGard Cab (optional), and 114.0 liters (30.1 US gal.; 25.1 Imp. gal) fuel tank.

John Deere 6120 Specifications

General Specifications
Model John Deere 6120
Length 4,130 mm (162.6 in)
Width
Height 2,490 mm (98 in)
Wheel base
Ground clearance 2WD: 580 mm (22.8 in)
4WD: 490 mm (19.3 in)
Weight (operating) 4WD Cab: 4,240 kg (9,348 lbs)
Fuel tank capacity 114.0 liters (30.1 US gal.; 25.1 Imp. gal)
Battery 12V
Cabin type Two-post ROPS or ConfortGard Cab (optional)
Engine
Engine model John Deere PowerTech 4045TL070
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.6 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke 106.0 mm X 127.0 mm (4.17 in X 5.00 in)
Horsepower 81.2 PS (59.7 kW; 80.0 HP) at 2,300 rpm
Torque 264.4 N·m (27 kg·m, 194.9 ft·lb) at 1,500 rpm
Starter Electric
Oil capacity: 15.9 L (16.8 US. qt, 14 Imp. qt.)
Coolant capacity: 13.6 L (14.4 US. qt, 12 Imp. qt.)
Engine
Engine model John Deere PowerTech 4045TL271
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.6 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke 106.0 mm X 127.0 mm (4.17 in X 5 in)
Horsepower 81.2 PS (59.7 kW; 80.0 HP) at 2,300 rpm
Torque 347.1 N·m (35.4 kg·m, 255.8 ft·lb) at 1,500 rpm
Starter Electric
Oil capacity: 15.9 L (16.8 US. qt, 14 Imp. qt.)
Coolant capacity: 13.6 L (14.4 US. qt, 12 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD (optional)
Steering type Hydrostatic power
Brakes Hydraulic wet disc
Transmission model John Deere SyncroPlus
Transmission type Fully synchronized with wet disc clutch
Gears 12 forward and 4 reverse
Speed Forward: 28.6 kmh (17.8 mph) Reverse: 19.8 kmh (12.3 mph)
Transmission oil capacity 52.1 L (13.8 US. gal, 11.5 Imp. gal.)
Transmission model John Deere SyncroPlus Power Reverser
Transmission type Power shuttle with wet disc clutch
Gears 16 forward and 16 reverse
Speed Forward: 28.6 kmh (17.8 mph)
Transmission oil capacity 52.1 L (13.8 US. gal, 11.5 Imp. gal.)
Transmission model John Deere PowrQuad
Transmission type Partial power shift with wet disc clutch
Gears 16 forward and 16 reverse
Speed Forward: 28.6 kmh (17.8 mph)
Transmission oil capacity 49.0 L (12.9 US. gal, 10.8 Imp. gal.)
Transmission model John Deere PowrQuad Plus
Transmission type Partial power shift with wet disc clutch
Gears 24 forward and 24 reverse
Speed Forward: 37.5 kmh (23.3 mph)
Transmission oil capacity 50.0 L (13.2 US. gal, 11.0 Imp. gal.)
Tires
Front tires Ag: 10.00-16 (2WD), 12.4-24 (4WD)
Rear tires Ag: 16.9-30
Three-Point Hitch
Category II
Control type
Lift capacity 2,150 kg (4,740 lbs)
PTO (Power take-off shaft)
Front PTO type Optional
Front PTO speed 1000 rpm
Rear PTO type Independent
Rear PTO speed 540, 540/1000 rpm
Hydraulic system
Hydraulic type Pressue flow compensated
Valves 4
Pump flow 25.0 gpm (94.6 lpm)
