John Deere 6120E

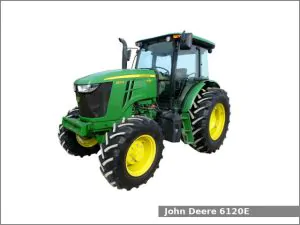

John Deere 6120EThe John Deere 6120E is a 2WD or 4WD utility tractor from the 6E series. This tractor has been manufactured by John Deere in Saltillo, Mexico since 2016. The John Deere 6120E is equipped with a 4.5 L (275.0 cu·in) four-cylinder diesel engine and one of two transmissions: a partially synchronized with wet disc clutch transmission with 12 forward and 12 reverse gears or a two-speed power shift with wet disc clutch transmission with 24 forward and 12 reverse gears.

The JD 6120E utility tractor used the John Deere PowerTech PWL engine. It is a 4.5 L, 4,506 cm2, (275.0 cu·in) four-cylinder wastegate turbochargeed with air-to-air aftercooling diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 16.8:1. This engine produced 121.7 PS (89.5 kW; 120.0 HP) at 2,200 rpm of output power.

The John Deere 6120E is equipped with power steering, hydraulic wet disc brakes, two-post foldable ROPS or cab (optional).

John Deere 6120E Specifications

General Specifications
ModelJohn Deere 6120E
Length
Width
Height
Wheel base 2WD: 2,450 mm (96.5 in)
4WD: 2,450 mm (96.5 in)
Weight (ballasted)6,465 kg (14,253 lbs)
Fuel tank capacity
Battery12V
Cabin typeTwo-post foldable ROPS or Cab (optional)
Engine
Engine modelJohn Deere PowerTech PWL
Engine typeFour-stroke, liquid-cooled, inline
Cylinders4
Fuel typeDiesel
Displacement4.5 L, 4,506 cm2, (275.0 cu·in)
Bore and stroke106.0 mm X 127.0 mm (4.17 in X 5 in)
Compression ratio16.8:1
Horsepower121.7 PS (89.5 kW; 120.0 HP) at 2,200 rpm
Torque493.6 N·m (50.3 kg·m, 363.8 ft·lb) at 1,600 rpm
StarterElectric
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typePower
BrakesHydraulic wet disc
Final driveInboard planetary
Differential lockMechanical rear
Transmission modelPowrReverser
Transmission typePartially synchronized with wet disc clutch
Gears12 forward and 12 reverse
Transmission modelPowrReverser Hi-Lo
Transmission typeTwo-speed power shift with wet disc clutch
Gears24 forward and 12 reverse
Tires
Front tires Ag: –
Rear tires Ag: –
Three-Point Hitch
CategoryII
Control typeDraft sensing
Lift capacity (at 610 mm/24 in) 2,490 kg (5,490 lbs)
3,310 kg (7,300 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO speed540/1000 rpm
Hydraulic system
Hydraulic typeOpen center
Pressure2828 psi (195 bar)
Valves2 to 3
Pump flow20.0 gpm (75.7 lpm)
