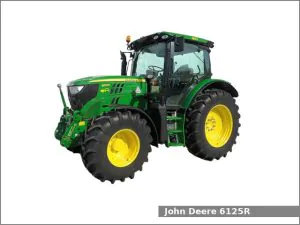

John Deere 6125R

John Deere 6125RThe John Deere 6125R is a 4WD utility tractor from the 6R series. This tractor was manufactured by John Deere in Mannheim, Baden-Württemberg, Germany from 2012 to 2016. The John Deere 6125R is equipped with a 4.5 L (276.0 cu·in) four-cylinder diesel engine and one of three transmissions: a partial power shift transmission with 24 forward and 24 reverse gears, a partial power shift transmission with 24 forward and 24 reverse gears or a infinitely variable transmission transmission with infinite forward and reverse gears.

The JD 6125R utility tractor used the John Deere engine. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder turbocharged intercooled diesel engine with 105.0 mm (4.13 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 126.8 PS (93.2 kW; 125.0 HP) at 2,100 rpm of output power.

The John Deere 6125R is equipped with hydrostatic power steering, ComfortView cab (standard) and 220.0 liters (58.1 US gal.; 48.4 Imp. gal) fuel tank.

Following attachments are available for the JD 6125R utility tractor:

  • John Deere H310 loader
  • John Deere H340 loader

John Deere 6125R Specifications

General Specifications
Model John Deere 6125R
Length 4,530 mm (178.3 in)
Width 2,550 mm (100.4 in)
Height 2,790 mm (109.8 in)
Wheel base
Ground clearance 500 mm (19.7 in)
Weight 5,470 kg (12,059 lbs)
Fuel tank capacity 220.0 liters (58.1 US gal.; 48.4 Imp. gal)
With HCS: 228.0 liters (60.2 US gal, 50.1 Imp. gal)
Battery 12V
Cabin type ComfortView cab (standard)
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke 105.0 mm X 127.0 mm (4.13 in X 5 in)
Horsepower 126.8 PS (93.2 kW; 125.0 HP) at 2,100 rpm
Torque 585.1 N·m (59.7 kg·m, 431.2 ft·lb) at 1,600 rpm
Starter Electric
Coolant capacity: 22.1 L (23.4 US. qt, 19.4 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes
Differential lock Electro-hydraulic rear with wet disc clutch. Self-locking front.
Transmission model PowrQuad Plus
Transmission type Partial power shift
Gears 24 forward and 24 reverse
Transmission model AutoQuad Plus
Transmission type Partial power shift
Gears 24 forward and 24 reverse
Transmission model AutoPowr IVT
Transmission type Infinitely variable transmission
Gears Infinite forward and reverse
Tires
Front tires Ag: –
Rear tires Ag: –
Three-Point Hitch
Category IIIN
Control type Load and depth control with electronic lower link sensing
Lift capacity (at ends) 4,350 kg (9,590 lbs)
Front Hitch
Category IIIN
Lift capacity (at ends) 3,300 kg (7,277 lbs)
PTO (Power take-off shaft)
Front PTO type Independent
Front PTO speed 1000 rpm
Rear PTO type Independent with electro-hydraulic clutch
Rear PTO speed 540/540E/1000 rpm
Hydraulic system
Hydraulic type Pressure flow compensated (PFC)
Valves Rear: 4
Front: 2 (optional)
Pump flow 21.1 gpm (79.9 lpm)
Optional: 32.1 gpm (121.5 lpm)
