John Deere 6170R

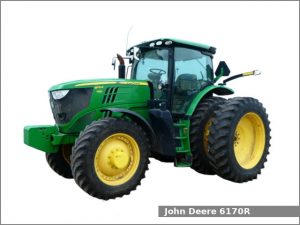

John Deere 6170RThe John Deere 6170R is a 4WD row-crop tractor from the 6R series. This tractor was manufactured by John Deere in Mannheim, Baden-Württemberg, Germany from 2011 to 2014. The John Deere 6170R is equipped with a 6.8 L (414.0 cu·in) six-cylinder diesel engine and one of four variants of the transmission .

The JD 6170R row-crop tractor used the John Deere engine. It is a 6.8 L, 6,784 cm2, (414.0 cu·in) six-cylinder natural aspirated diesel engine with 105.0 mm (4.13 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 172.4 PS (126.8 kW; 170.0 HP) at 2,100 rpm of output power and 796.1 N·m (81.2 kg·m, 586.7 ft·lb) at 1,600 rpm of torque.

The John Deere 6170R is equipped with hydrostatic power steering, disc brakes, ComfortView cab (standard) and 455.0 liters (120.2 US gal.; 100.1 Imp. gal) fuel tank.

Following attachments are available for the John Deere 6170R row-crop tractor:

  • John Deere H360 loader
  • John Deere H380 loader

John Deere 6170R Specifications

General Specifications
Model John Deere 6170R
Length 5,040 mm (198.4 in)
Width 2,550 mm (100.4 in)
Height 3,150 mm (124 in)
Wheel base 2,790 mm (109.8 in)
Ground clearance 550 mm (21.7 in)
Weight (shipping) 7,350 kg (16,204 lbs)
Fuel tank capacity 455.0 liters (120.2 US gal.; 100.1 Imp. gal)
Battery 12V
Cabin type ComfortView cab (standard)
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 6.8 L, 6,784 cm2, (414.0 cu·in)
Bore and stroke 105.0 mm X 127.0 mm (4.13 in X 5 in)
Horsepower 172.4 PS (126.8 kW; 170.0 HP) at 2,100 rpm
Torque 796.1 N·m (81.2 kg·m, 586.7 ft·lb) at 1,600 rpm
Starter Electric
Coolant capacity: 28.0 L (29.6 US. qt, 24.6 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Disc
Differential lock Electro-hydraulic rear with wet disc clutch. Self-locking front
Transmission model PowrQuad Plus
Transmission type Partial power shift
Gears 20 forward and 20 reverse
Transmission model AutoQuad Plus
Transmission type Partial power shift
Gears 20 forward and 20 reverse
Transmission model AutoPowr IVT
Transmission type Infinitely variable transmission
Gears Infinite forward and reverse
Transmission model DirectDrive
Transmission type
Gears Infinite forward and reverse
Tires
Front tires
Rear tires
Three-Point Hitch
Category III
Control type Load and depth control with electronic lower link sensing
Lift capacity (at ends) 5,350 kg (11,780 lbs)
PTO (Power take-off shaft)
Front PTO type Independent
Front PTO speed 1000 rpm
Rear PTO type Independent with electro-hydraulic wet disc clutch
Rear PTO speed 540/540E/1000 or 540E/1000/1000E rpm
Hydraulic system
Hydraulic type Pressure flow compensated (PFC)
Valves Rear: 4
Front: 2 (optional)
Pump flow 31.1 gpm (117.7 lpm)
Optional: 41.0 gpm (155.2 lpm)
