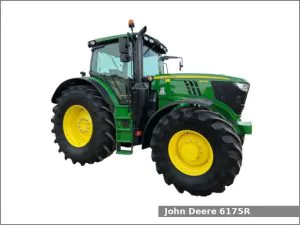

John Deere 6175R

John Deere 6175RThe John Deere 6175R is a 4WD row-crop tractor from the 6R series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 2015 to 2021. The John Deere 6175R is equipped with a 6.8 L (414.0 cu·in) six-cylinder diesel engine and one of four transmissions: a partial power shift transmission with 16 forward and 16 reverse gears, a partial power shift transmission with 20 forward and 20 reverse gears, a eight-speed power shift transmission with 24 forward and 24 reverse gears or IVT transmission with infinite forward and reverse gears.

The JD 6175R row-crop tractor used the John Deere engine. It is a 6.8 L, 6,784 cm2, (414.0 cu·in) six-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 177.5 PS (130.5 kW; 175.0 HP) at 2,100 rpm of output power and 829.9 N·m (84.6 kg·m, 611.6 ft·lb) at 1,600 rpm of torque.

The John Deere 6175R is equipped with power steering, cab (standard) with air-conditioning and 335.0 liters (88.5 US gal.; 73.7 Imp. gal) fuel tank.

Following attachments are available for the John Deere 6175R row-crop tractor:

  • John Deere H360 loader
  • John Deere H380 loader

John Deere 6175R Specifications

General Specifications
Model John Deere 6175R
Length 5,040 mm (198.4 in)
Width
Height (cab) 3,200 mm (126 in)
Wheel base 2,790 mm (109.8 in)
Weight (shipping) 8,895 kg (19,610 lbs)
Fuel tank capacity 335.0 liters (88.5 US gal.; 73.7 Imp. gal)
Battery 12V
Cabin type Cab standard with air-conditioning
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 6.8 L, 6,784 cm2, (414.0 cu·in)
Bore and stroke 106.0 mm X 127.0 mm (4.17 in X 5 in)
Horsepower 177.5 PS (130.5 kW; 175 HP) at 2,100 rpm
Torque 829.9 N·m (84.6 kg·m, 611.6 ft·lb) at 1,600 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes
Final drive Inboard planetary
Transmission model PowerQuad Plus
Transmission type Partial power shift
Gears 16 forward and 16 reverse
Speed Forward: 31.7 kmh (19.7 mph) Reverse: 32.3 kmh (20.1 mph)
Transmission model AutoQuad Plus Eco
Transmission type Partial power shift
Gears 20 forward and 20 reverse
Speed Forward: 51.2 kmh (31.8 mph) Reverse: 53.2 kmh (33.1 mph)
Transmission model Direct Drive
Transmission type Eight-speed power shift
Gears 24 forward and 24 reverse
Speed Forward: 42.0 kmh (26.1 mph) Reverse: 43.7 kmh (27.2 mph)
Transmission model AutoPowr IVT
Transmission type Infinitely variable transmission
Gears Infinite forward and reverse
Tires
Front tires Ag: 420/90R30
Rear tires Ag: 480/80R46
Three-Point Hitch
Category III/IIIN
Control type
Lift capacity (at 610 mm/24 in) 4,300 kg (9,480 lbs)
Optional: 4,850 kg (10,690 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent with electro-hydraulic clutch
Rear PTO speed 540/1000 (1.375)
540/540E/1000 (1.375)
540E/1000/1000E (1.375)
Hydraulic system
Hydraulic type Closed center pressure flow compensated (PFC)
Pressure 2900 psi (199.9 bar)
Valves Rear: 3 to 6
Pump flow 41.0 gpm (155.2 lpm)
SCV flow 26.4 gpm (99.9 lpm)
