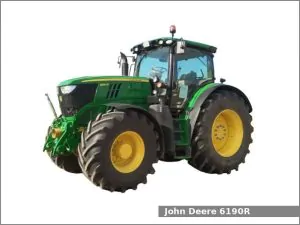

John Deere 6190R

John Deere 6190RThe John Deere 6190R is a 2WD/4WD row-crop tractor from the 6R series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 2012 to 2014. The John Deere 6190R is equipped with a 6.8 L (415.0 cu·in) six-cylinder diesel engine and one of four transmissions: a partial power shift transmission with 16 forward and 16 reverse gears, a partial power shift transmission with 20 forward and 20 reverse gears, a infinitely variable transmission with infinite forward and reverse gears or a eight-speed power shift with 24 forward and 24 reverse gears.

The JD 6190R row-crop tractor used the John Deere PowerTech PSX engine. It is a 6.8 L, 6,800 cm2, (415.0 cu·in) six-cylinder turbocharged aftercooled diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.0:1. This engine produced 192.7 PS (141.7 kW; 190.0 HP) at 2,100 rpm of output power.

The John Deere 6190R is equipped with hydrostatic power steering, hydraulic wet disc brakes, ComfortView cab standard with air-conditioning and 359.6 liters (95 US gal.; 79.1 Imp. gal) fuel tank.

Following attachments are available for the John Deere 6190R row-crop tractor:

  • John Deere H360 loader
  • John Deere H380 loader

John Deere 6190R Specifications

General Specifications
Model John Deere 6190R
Length 5,040 mm (198.4 in)
Width 2,550 mm (100.4 in)
Height 3,150 mm (124 in)
Wheel base 2WD: 3,020 mm (118.9 in)
4WD: 2,790 mm (109.8 in)
Ground clearance (front axle) 510 mm (20.1 in)
Weight 2WD: 7,030 kg (15,498 lbs)
4WD: 7,800 kg (17,196 lbs)
Fuel tank capacity 359.6 liters (95 US gal.; 79.1 Imp. gal)
Optional: 405.0 liters (107 US gal.; 89.1 Imp. gal)
Battery 12V
Cabin type ComfortView cab standard with air-conditioning
Engine
Engine model John Deere PowerTech PSX
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 6.8 L, 6,800 cm2, (415.0 cu·in)
Bore and stroke 106.0 mm X 127.0 mm (4.17 in X 5 in)
Compression ratio 17.0:1
Horsepower 192.7 PS (141.7 kW; 190.0 HP) at 2,100 rpm
Starter Electric
Oil capacity: 23.5 L (24.8 US. qt, 20.7 Imp. qt.)
Coolant capacity: 28.2 L (29.8 US. qt, 24.8 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD (optional)
Steering type Hydrostatic power
Brakes Hydraulic wet disc
Differential lock Electro-hydraulic rear lock with wet disc clutch
Transmission model PowerQuad Plus
Transmission type Partial power shift with hydraulic wet disc clutch
Gears 16 forward and 16 reverse
Speed Forward: 28.3 kmh (17.6 mph)
Transmission oil capacity 89.0 L (23.5 US. gal, 19.6 Imp. gal.)
Transmission model AutoQuad Plus Eco
Transmission type Partial power shift with hydraulic wet disc clutch
Gears 20 forward and 20 reverse
Transmission oil capacity 89.0 L (23.5 US. gal, 19.6 Imp. gal.)
Transmission model AutoPowr IVT
Transmission type Infinitely variable transmission
Gears Infinite forward and reverse
Transmission oil capacity 105.1 L (27.8 US. gal, 23.1 Imp. gal.)
Transmission model DirectDrive
Transmission type Eight-speed power shift
Gears 24 forward and 24 reverse
Tires
Front tires Ag: 490/90R30
Rear tires Ag: 480/80R46
Three-Point Hitch
Category III
Control type Electro-hydraulic draft sensing
Lift capacity (at ends) 8,500 kg (18,743 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1000 (1.375)
540/540E/1000 (1.375)
540/1000/1000E (1.375)
540/1000 (1.75)
540/540E/1000 (1.75)
540/1000/1000E (1.75)
Hydraulic system
Hydraulic type Closed center pressure flow compensated (PFC)
Pressure 2900 psi (200.0 bar)
Valves 2 to 4
Pump flow 41.0 gpm (155.2 lpm)
SCV flow 26.4 gpm (99.9 lpm)
