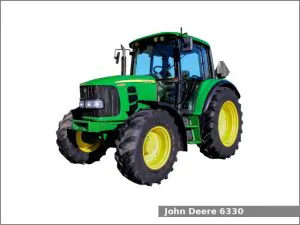

John Deere 6330

John Deere 6330The John Deere 6330 is a 2WD or 4WD utility tractor from the 6030 series. This tractor was manufactured by John Deere in Mannheim, Baden-Württemberg, Germany from 2007 to 2012. The John Deere 6330 is equipped with a 4.5 L (276.0 cu·in) four-cylinder diesel engine and four variants of the transmission.

The JD 6330 utility tractor used the John Deere 4045HL PowerTech E engine. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 19.0:1. This engine produced 106.5 PS (78.3 kW; 105.0 HP) at 2,300 rpm of output power and 424.4 N·m (43.3 kg·m, 312.8 ft·lb) at 1,500 rpm.

The John Deere 6330 is equipped with hydrostatic power steering, hydraulic wet disc brakes, two-post ROPS or cab (optional), and 165.0 liters (43.6 US gal.; 36.3 Imp. gal) fuel tank.

John Deere 6330 Specifications

General Specifications
Model John Deere 6330
Length
Width
Height
Wheel base 2,400 mm (94.5 in)
Ground clearance 460 mm (18.1 in)
Weight 4,536 kg (10,000 lbs)
Fuel tank capacity Standard: 165.0 liters (43.6 US gal.; 36.3 Imp. gal)
Optional: 182.0 liters (48.0 US gal.; 40.0 Imp. gal)
Battery 12V
Cabin type Two-post ROPS or Cab (optional)
Engine
Engine model 2007-2009: John Deere 4045HL281 PowerTech E
2010-2012: John Deere 4045HL288 PowerTech E
Engine type Four-stroke, liquid-cooled, inline
Cylinders 4
Fuel type Diesel
Displacement 4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke 106.0 mm X 127.0 mm (4.17 in X 5 in)
Compression ratio 19.0:1
Horsepower (net) 106.5 PS (78.3 kW; 105.0 HP) at 2,300 rpm
Torque 424.4 N·m (43.3 kg·m, 312.8 ft·lb) at 1,500 rpm
Starter Electric
Oil capacity: 15.9 L (16.8 US. qt, 14 Imp. qt.)
Coolant capacity: ROPS: 26.5 L (28.0 US. qt, 23.3 Imp. qt.)
Cab: 29.1 L (30.7 US. qt, 25.6 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD (optional)
Steering type Hydrostatic power
Brakes Hydraulic wet disc
Transmission model John Deere SyncroPlus
Transmission type Fully synchronized
Gears 12 forward and 4 reverse
Speed Forward: 30.7 kmh (19.1 mph) Reverse: 21.2 kmh (13.2 mph)
Transmission oil capacity 51.9 L (13.7 US. gal, 11.4 Imp. gal.)
Transmission model John Deere PowrReverser
Transmission type Synchronized with power shuttle
Gears 16 forward and 16 reverse
Speed Forward: 30.7 kmh (19.1 mph) Reverse: 32.0 kmh (19.9 mph)
Transmission oil capacity 51.9 L (13.7 US. gal, 11.4 Imp. gal.)
Transmission model John Deere PowrQuad
Transmission type Partial power shift
Gears 16 forward and 16 reverse
Speed Forward: 30.7 kmh (19.1 mph) Reverse: 32.0 kmh (19.9 mph)
Transmission oil capacity PowrQuad: 48.8 L (12.9 US. gal, 10.7 Imp. gal.)
PowrQuad Plus: 50.0 L (13.2 US. gal, 11.0 Imp. gal.)
Transmission model John Deere PowrQuad
Transmission type Partial power shift
Gears 24 forward and 24 reverse
Speed Forward: 40.2 kmh (25.0 mph)
Transmission oil capacity 50.0 L (13.2 US. gal, 11.0 Imp. gal.)
Tires
Front tires Ag: –
Rear tires Ag: –
Three-Point Hitch
Category III/II
Control type
Lift capacity (at ends) 2,020 kg (4,450 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540, 540/1000 rpm
Hydraulic system
Hydraulic type open-center load sensing or closed-center pressure-flow compensated (optional)
Hydraulic capacity 51.9 L (13.7 US. gal, 11.4 Imp. gal.)
Pressure 2900 psi (199.9 bar)
Valves 1 to 3
Total flow 21.1 gpm (79.9 lpm)
Optional: 29.0 gpm (109.8 lpm)
