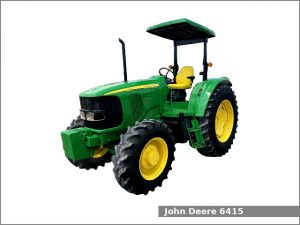

The John Deere 6415 is a 2WD or 4WD utility tractor from the 6015 series. This tractor was manufactured by John Deere in Mannheim, Baden-Württemberg, Germany from 2003 to 2007. The John Deere 6415 is equipped with a 4.5 L (276.0 cu·in) four-cylinder diesel engine and one of three transmissions: a fully synchronized transmission with 12 forward and 4 reverse gears, a power shuttle transmission with 16 forward and 16 reverse gears or a four-speed power shift transmission with 16 forward and 16 reverse gears.
The JD 6415 utility tractor used the John Deere 4045 engine. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.8:1. This engine produced 101.5 PS (74.6 kW; 100.0 HP) at 2,300 rpm of output power.
The JD 6415 is equipped with hydrostatic power steering, hydraulic wet disc brakes, two-post foldable ROPS or ComfortVantage cab (optional), and 165.0 liters (43.6 US gal.; 36.3 Imp. gal) fuel tank.
John Deere 6415 Specifications
| General Specifications | |
| Model | John Deere 6415 |
| Length | 4,130 mm (162.6 in) |
| Width | – |
| Height | 2,460 mm (96.9 in) |
| Wheel base | 2,400 mm (94.5 in) |
| Weight (shipping) |
2WD ROPS: 3,490 kg (7,695 lbs) 2WD Cab: 3,890 kg (8,575 lbs) 4WD ROPS: 3,690 kg (8,130 lbs) 4WD Cab: 4,075 kg (8,985 lbs) |
| Fuel tank capacity | 165.0 liters (43.6 US gal.; 36.3 Imp. gal) |
| Battery | 12V, CCA 830A |
| Cabin type | Two-post foldable ROPS or ComfortVantage Cab (optional) |
| Engine | |
| Engine model | John Deere 4045 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Diesel |
| Displacement | 4.5 L, 4,523 cm2, (276.0 cu·in) |
| Bore and stroke | 106.0 mm X 127.0 mm (4.17 in X 5 in) |
| Compression ratio | 17.8:1 |
| Horsepower | 101.5 PS (74.6 kW; 100.0 HP) at 2,300 rpm |
| Starter | Electric |
| Oil capacity: | 15.9 L (16.8 US. qt, 14 Imp. qt.) |
| Coolant capacity: | 11.0 L (11.6 US. qt, 9.7 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD or 4×4 MFWD 4WD |
| Steering type | Hydrostatic power |
| Brakes | Hydraulic wet disc |
| Differential lock | Electro-hydraulic rear |
| Transmission model | SyncroPlus |
| Transmission type | Fully synchronized with wet disc clutch |
| Gears | 12 forward and 4 reverse |
| Speed | Forward: 28.8 kmh (17.9 mph) Reverse: 19.0 kmh (11.8 mph) |
| Transmission model | SyncroPlus Reverser |
| Transmission type | Power shuttle with wet disc clutch |
| Gears | 16 forward and 16 reverse |
| Speed | Forward: 28.6 kmh (17.8 mph) |
| Transmission model | PowrQuad |
| Transmission type | Four-speed power shift with wet disc clutch |
| Gears | 16 forward and 16 reverse |
| Speed | Forward: 30.4 kmh (18.9 mph) |
| Tires | |
| Front tires | Ag: 10.00-16 (2WD), 12.4-24 (4WD) |
| Rear tires | Ag: 18.4-34 |
| Three-Point Hitch | |
| Category | II |
| Control type | Electro-hydraulic lower-link draft sensing |
| Lift capacity (at ends) | 2,280 kg (5,025 lbs) |
| PTO (Power take-off shaft) | |
| Rear PTO type | Independent with electro-hydraulic clutch |
| Rear PTO speed | 540/1000 rpm |
| Hydraulic system | |
| Hydraulic type | Constant-flow load-sensing |
| Valves | 1 to 4 |
| Pump flow | 17.5 gpm (66.2 lpm) |
