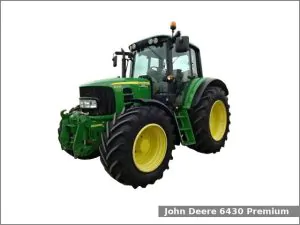

The John Deere 6430 Premium is a 2WD or 4WD tractor from the 6030 series. This tractor was manufactured by John Deere in Mannheim, Baden-Württemberg, Germany from 2007 to 2012.
The JD 6430 Premium is equipped with a 4.5 L (276.0 cu·in) four-cylinder diesel engine and one of three transmissions: a partial power shift transmission with 16 forward and 16 reverse gears, a partial power shift transmission with 24 forward and 24 reverse gears or a infinitely variable transmission transmission with infinite forward and reverse gears.
The tractor could be equipped with the following engines:
- John Deere 4045HL480 PowerTech Plus (2007-2009). It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder variable geometry turbocharged diesel engine with 105.0 mm (4.13 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.0:1. This engine produced 116.7 PS (85.8 kW; 115.1 HP) at 2,300 rpm of output power.
- John Deere 4045HL481 PowerTech Plus (2010-2012). It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder variable geometry turbocharged diesel engine. The cylinder bore is 105.0 mm (4.13 in) and the piston stroke is 127.0 mm (5 in). The compression ratio rating is 17.0:1. This engine produced 126.8 PS (93.2 kW; 125.0 HP) at 2,300 rpm of output power.
The John Deere 6430 Premium is equipped with hydrostatic power steering, differential hydraulic wet disc brakes, ComfortGard Cab (standard) and 181.7 liters (48 US gal.; 40 Imp. gal) fuel tank.
Following attachments are available for the John Deere 6430 Premium row-crop tractor:
- John Deere 563 loader
- John Deere 673 loader
John Deere 6430 Premium Specifications
| General Specifications | |
| Model | John Deere 6430 Premium |
| Length | – |
| Width | – |
| Height | – |
| Wheelbase | 2,400 mm (94.5 in) |
| Weight (shipping) | 2WD: 4,565 kg (10,064 lbs) 4WD: 4,750 kg (10,472 lbs) |
| Fuel tank capacity | 181.7 liters (48 US gal.; 40 Imp. gal) |
| Battery | 12V |
| Cabin type | ComfortGard Cab (standard) |
| Engine | |
| Engine model | John Deere 4045HL480 PowerTech Plus |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 4 |
| Fuel type | Diesel |
| Displacement | 4.5 L, 4,523 cm2, (276.0 cu·in) |
| Bore and stroke | 105.0 mm X 127.0 mm (4.13 in X 5 in) |
| Compression ratio | 17.0:1 |
| Horsepower | 116.7 PS (85.8 kW; 115.0 HP) at 2,300 rpm |
| Torque | 469.2 N·m (47.8 kg·m, 345.8 ft·lb) at 1,500 rpm |
| Starter | Electric |
| Oil capacity: | 15.9 L (16.8 US. qt, 14 Imp. qt.) |
| Coolant capacity: | 29.1 L (30.7 US. qt, 25.6 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD or 4×4 MFWD 4WD (optional) |
| Steering type | Hydrostatic power |
| Brakes | Differential hydraulic wet disc |
| Transmission model | John Deere PowrQuad Plus |
| Transmission type | Partial power shift |
| Gears | 16 forward and 16 reverse |
| Speed | Forward: 30.7 kmh (19.1 mph) Reverse: 32.2 kmh (20.0 mph) |
| Transmission oil capacity | 48.8 L (12.9 US. gal, 10.7 Imp. gal.) |
| Transmission model | John Deere AutoQuad Plus |
| Transmission type | Partial power shift |
| Gears | 24 forward and 24 reverse |
| Speed | Forward: 40.2 kmh (25.0 mph) |
| Transmission oil capacity | 50.0 L (13.2 US. gal, 11 Imp. gal.) |
| Transmission model | John Deere IVT |
| Transmission type | Infinitely variable transmission |
| Gears | Infinite forward and reverse |
| Speed | Forward: 40.2 kmh (25.0 mph) |
| Transmission oil capacity | 60.4 L (16 US. gal, 13.3 Imp. gal.) |
| Tires | |
| Front tires | Ag: 10.00-16 (2WD), 12.4R24 (4WD) |
| Rear tires | Ag: 16.9R30 |
| Three-Point Hitch | |
| Category | II or IIIN/II (optional) |
| Control type | – |
| Lift capacity (at 610 mm/24 in) | 2,315 kg (5,105 lbs) Optional: 3279 kg (7,231 lbs) |
| PTO (Power take-off shaft) | |
| Front PTO type | Optional |
| Front PTO speed | 1000 rpm |
| Rear PTO type | Independent |
| Rear PTO speed | 540/1000 or 540/540E/1000 (optional) |
| Hydraulic system | |
| Hydraulic type | Closed-center pressure and flow compensated (PFC) |
| Hydraulic capacity | 50.0 L (13.2 US. gal, 11.0 Imp. gal.) IVT: 60.4 L (16.0 US. gal, 13.3 Imp. gal.) |
| Pressure | 2900 psi (200 bar) |
| Valves | 2 to 4 |
| Pump flow | 29.0 gpm (109.8 lpm) |
