John Deere 650

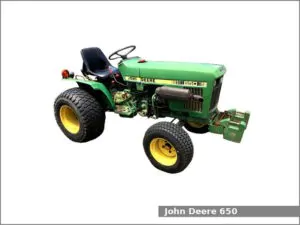

John Deere 650The John Deere 650 is a 2WD or 4WD compact utility tractor from the 50 series. This tractor was manufactured by the Kubota for John Deere in Japan from 1981 to 1989. The John Deere 650 is equipped with a 0.9 L two-cylinder diesel engine and gear shift transmission (8 forward and 2 reverse gears) with a dry disk clutch.

The JD 650 utility tractor used the Yanmar 2T80UJ engine. It is a 0.9 L, 854 cm2, (52.1 cu·in) two-cylinder natural aspirated diesel engine with 80.0 mm (3.15 in) of the cylinder bore and 85.0 mm (3.35 in) of the piston stroke. The compression ratio rating is 22.5:1. This engine produced 17.3 PS (12.7 kW; 17.0 HP) at 2,600 rpm of maximum output power.

The John Deere 650 is equipped with manual steering (power steering was available as an option); differential mechanical dry, internal expanding shoe brakes; open operator station with two-post ROPS (Rollover protection structure ) and 23.5 liters (6.2 US gal.; 5.2 Imp. gal) fuel tank.

Following attachments are available for JD 650 compact utility tractor:

  • John Deere 160 mid-mount 60 in (1,520 mm) mower deck with 3-blades
  • John Deere 365 front-mount 54 in (1,370 mm) blade
  • John Deere 359 front-mount 60 in (1,520 mm) two-stage snow blower
  • John Deere 60 loader

John Deere 650 Specifications

General Specifications
Model John Deere 650
Length 2,730 mm (107.5 in)
Width 1,090 mm (42.9 in)
Height 1,960 mm (77.2 in)
Wheel base 1,420 mm (55.9 in)
Weight 2WD: 694 kg (1,530 lbs)
4WD: 745 kg (1,640 lbs)
Fuel tank capacity 23.5 liters (6.2 US gal.; 5.2 Imp. gal)
Battery 12V
Cabin type Open operator station with two-post ROPS
Engine
Engine model Yanmar 2T80UJ
Engine type Four-stroke, liquid-cooled, inline
Cylinders 2
Fuel type Diesel
Displacement 0.9 L, 854 cm2, (52.1 cu·in)
Bore and stroke 80.0 mm X 85.0 mm (3.15 in X 3.35 in)
Compression ratio 22.5:1
Horsepower 17.3 PS (12.7 kW; 17 HP) at 2,600 rpm
Starter Electric
Oil capacity: 2.4 L (2.54 US. qt, 2.11 Imp. qt.)
Coolant capacity: 3.8 L (4.02 US. qt, 3.34 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Manual or power (option)
Brakes Differential mechanical dry, internal expanding shoe
Transmission model
Transmission type Gear shift with dry disk clutch
Gears 8 forward and 2 reverse
Speed Forward: 16.6 kmh (10.3 mph) Reverse: 5.0 (3.1 mph)
Transmission oil capacity 13.2 L (13.95 US. qt, 11.61 Imp. qt.)
Tires
Front tires Ag: 5.00-12, 6-12
Lawn/turf: 23/8.5-12
Rear tires Ag: 9.5-16
Lawn/turf: 31/15.5-15
Three-Point Hitch
Caterogy I
Control type
Lift capacity
PTO (Power take-off shaft)
Middle PTO type Independent with electro-magnetic clutch (option)
Middle PTO spped
Rear PTO type Transmission type with over-running clutch
Rear PTO spped 540 rpm
Hydraulic system
Hydraulic type Open center
Pressure 2,030 psi (140 bar)
