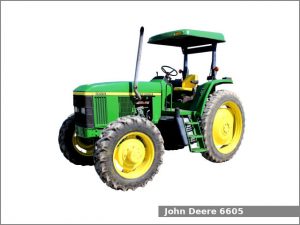

John Deere 6605

John Deere 6605The John Deere 6605 is a 2WD or 4WD utility tractor from the Advantage series. This tractor was manufactured by John Deere in Mannheim, Baden-Württemberg, Germany from 1998 to 2002. The John Deere 6605 is equipped with a 6.8 L (414.0 cu·in) six-cylinder diesel engine and one of two transmissions: a fully synchronized transmission with 12 forward and 4 reverse gears or a power shuttle transmission with 16 forward and 16 reverse gears.

The JD 6605 utility tractor used the John Deere 6068 engine. It is a 6.8 L, 6,784 cm2, (414.0 cu·in) six-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.0:1. This engine produced 96.3 PS (70.8 kW; 95.0 HP) at 2,100 rpm of output power.

The John Deere 6605 is equipped with power steering, hydraulic wet disc brakes, two-post foldable ROPS or Cab (optional) and 207.0 liters (54.7 US gal.; 45.5 Imp. gal) fuel tank.

John Deere 6605 Specifications

General Specifications
Model John Deere 6605
Length 4,500 mm (177.2 in)
Width
Height ROPS: 2,860 mm (112.6 in)
Wheel base 2WD: 2,640 mm (103.9 in)
4WD: 2,700 mm (106.3 in)
Weight (shipping) 2WD ROPS: 3,980 kg (8,774 lbs)
4WD ROPS: 4,250 kg (9,370 lbs)
2WD Cab: 4,380 kg (9,658 lbs)
4WD Cab: 4,650 kg (10,252 lbs)
Fuel tank capacity 207.0 liters (54.7 US gal.; 45.5 Imp. gal)
Battery 12V, CCA 1230A
Cabin type Two-post foldable ROPS or Cab (optional)
Engine
Engine model John Deere 6068
Engine type Four-stroke, air-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 6.8 L, 6,784 cm2, (414.0 cu·in)
Bore and stroke 106.0 mm X 127.0 mm (4.17 in X 5 in)
Compression ratio 17.0:1
Horsepower 96.3 PS (70.8 kW; 94.9 HP) at 2,100 rpm
Torque 494.9 N·m (50.5 kg·m, 364.7 ft·lb) at 1,400 rpm
Starter Electric
Oil capacity: 12.0 L (12.7 US. qt, 10.6 Imp. qt.)
Coolant capacity: ROPS: 13.0 L (13.7 US. qt, 11.4 Imp. qt.)
Cab: 15.5 L (16.4 US.qt, 13.6 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD
Steering type Power
Brakes Hydraulic wet disc
Transmission model John Deere SyncroVantage
Transmission type Fully synchronized
Gears 12 forward and 4 reverse
Speed Forward: 30.7 kmh (19.1 mph) Reverse: 20.3 kmh (12.6 mph)
Transmission oil capacity 51.9 L (13.7 US. gal, 11.4 Imp. gal.)
Transmission model John Deere SyncroVantage Power Reverser
Transmission type Power shuttle
Gears 16 forward and 16 reverse
Speed Forward: 28.6 kmh (17.8 mph) Reverse: kmh (0 mph)
Transmission oil capacity 51.9 L (13.7 US. gal, 11.4 Imp. gal.)
Tires
Front tires Ag: 10.00-16 (2WD), 12.4-24 (4WD)
Rear tires Ag: 18.4-38
Three-Point Hitch
Category II
Control type Position control with optional draft control
Lift capacity 2,685 kg (5,920 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540/1000 rpm
Hydraulic system
Hydraulic type HydraVantage constant flow load sensing
Pressure 2500 psi (172.4 bar)
Valves 1
Pump flow 17.5 gpm (66.2 lpm)
