John Deere 7130

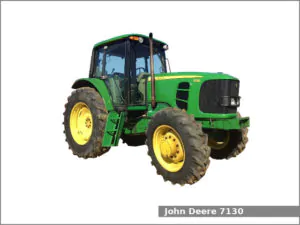

John Deere 7130The John Deere 7130 is a 2WD or 4WD row-crop tractor from the 7030 Small-Frame series. This tractor was manufactured by John Deere in Mannheim, Baden-Württemberg, Germany from 2007 to 2011. The John Deere 7130 is equipped with one of two engines: a 6.8 L (414.0 cu·in) six-cylinder diesel engine or a 4.5 L (276.0 cu·in) four-cylinder diesel engine and one of four transmissions: a full synchro shift transmission with 12 forward and 4 reverse gears, a full synchro shift transmission with 16 forward and 16 reverse gears, a partial power shift transmission with 16 forward and 16 reverse gears or a partial power shift transmission with 24 forward and 24 reverse gears.

The tractor could be equipped with the following engines:

  • John Deere 6068HL280. It is a 6.8 L, 6,784 cm2, (414.0 cu·in) six-cylinder turbocharged diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. This engine produced 122.7 PS (90.2 kW; 121.0 HP) at 2,300 rpm of output power and 485.4 N·m (49.5 kg·m, 357.7 ft·lb) at 1,500 rpm of torque.
  • John Deere PowerTech E 4045HL288. It is a 4.5 L, 4,523 cm2, (276.0 cu·in) four-cylinder turbocharged diesel engine. The cylinder bore is 106.0 mm (4.17 in) and the piston stroke is 127.0 mm (5 in). The compression ratio rating is 19.0:1. This engine produced 126.8 PS (93.2 kW; 125.0 HP) at 2,300 rpm of output power and 504.4 N·m (51.4 kg·m, 371.7 ft·lb) at 1,600 rpm of torque.

The JD 7130 is equipped with hydrostatic power steering, differential hydraulic wet disc brakes, two-post Roll-Gard ROPS or cab (optional), and 207.0 liters (54.7 US gal.; 45.5 Imp. gal) fuel tank.

John Deere 7130 Specifications

General Specifications
ModelJohn Deere 7130
Length4,750 mm (187 in)
Width (flange axl)1,660 mm (65.4 in)
Height ROPS: 2,920 mm (115 in)
Cab: 2,900 mm (114.2 in)
Wheel base 2WD: 2,700 mm (106.3 in)
4WD: 2,640 mm (103.9 in)
Ground clearance (front axle) 2WD: 540 mm (21.3 in)
4WD: 580 mm (22.8 in)
Weight (shipping) 2WD: 4,380 kg (9,656 lbs)
4WD: 4,650 kg (10,251 lbs)
Fuel tank capacity 207.0 liters (54.7 US gal.; 45.5 Imp. gal)
250.0 liters (66.0 US gal.; 55.0 Imp. gal) (optional)
Battery12V
Cabin typeTwo-post Roll-Gard ROPS or Cab (optional)
Engine
Engine modelJohn Deere 6068HL280
Engine typeFour-stroke, liquid-cooled, inline
Cylinders6
Fuel typeDiesel
Displacement6.8 L, 6,784 cm2, (414.0 cu·in)
Bore and stroke106.0 mm X 127.0 mm (4.17 in X 5 in)
Horsepower122.7 PS (90.2 kW; 121.0 HP) at 2,300 rpm
Torque485.4 N·m (49.5 kg·m, 357.7 ft·lb) at 1,500 rpm
StarterElectric
Oil capacity:19.7 L (20.8 US. qt, 17.3 Imp. qt.)
Engine
Engine modelJohn Deere PowerTech E 4045HL288
Engine typeFour-stroke, liquid-cooled, inline
Cylinders4
Fuel typeDiesel
Displacement4.5 L, 4,523 cm2, (276.0 cu·in)
Bore and stroke106.0 mm X 127.0 mm (4.17 in X 5 in)
Compression ratio19.0:1
Horsepower126.8 PS (93.2 kW; 125.0 HP) at 2,300 rpm
Torque504.4 N·m (51.4 kg·m, 371.7 ft·lb) at 1,600 rpm
StarterElectric
Oil capacity:15.9 L (16.8 US. qt, 14 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeHydrostatic power
BrakesDifferential hydraulic wet disc
Transmission modelJohn Deere SyncroPlus
Transmission typeFull synchro shift
Gears12 forward and 4 reverse
Speed Forward: 30.7 kmh (19.1 mph) Reverse: 21.2 kmh (13.2 mph)
Transmission oil capacity51.9 L (13.7 US. gal, 11.4 Imp. gal.)
Transmission modelJohn Deere SyncroPlus PowrReverser
Transmission typeFull synchro shift
Gears16 forward and 16 reverse
Speed Forward: 30.7 kmh (19.1 mph) Reverse: 32.0 kmh (19.9 mph)
Transmission oil capacity51.9 L (13.7 US. gal, 11.4 Imp. gal.)
Transmission modelJohn Deere PowrQuad
Transmission typePartial power shift
Gears16 forward and 16 reverse
Speed Forward: 30.7 kmh (19.1 mph) Reverse: 32.0 kmh (19.9 mph)
Transmission oil capacity51.9 L (13.7 US. gal, 11.4 Imp. gal.)
Transmission modelJohn Deere PowrQuad
Transmission typePartial power shift
Gears24 forward and 24 reverse
Speed Forward: 38.8 kmh (19.1 mph) Reverse: 40.5 kmh (25.2 mph)
Transmission oil capacity51.9 L (13.7 US. gal, 11.4 Imp. gal.)
Tires
Front tires Ag: 10.00-16 (2WD), 14.9R24 (4WD)
Rear tires Ag: 18.4R38
Three-Point Hitch
CategoryII
Control typePosition contro or electronic lower-link (optional
Lift capacity (at 610 mm/ 24 in)2,685 kg (5,915 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO speed540/1000 rpm
Hydraulic system
Hydraulic typeConstant flow load sensing or closed-center load sensing (optional with ROPS)
Hydraulic capacity51.9 L (13.7 US. gal, 11.4 Imp. gal.)
Pressure2900 psi (199.9 bar)
Valves1 to 4
Pump flow 21.1 gpm (79.9 lpm)
Optional with ROPS: 29.0 gpm (109.8 lpm)
