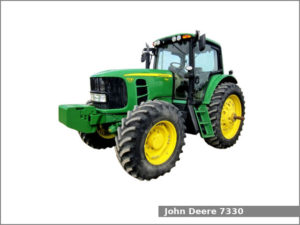

The John Deere 7330 is a 2WD row-crop tractor from the 7030 Small-Frame series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA, and in Mannheim, Baden-Württemberg, Germany from 2007 to 2017. The John Deere 7330 is equipped with a 6.8 L (414.4 cu·in) six-cylinder diesel engine and one of three transmissions: a partial power shift transmission with 16 forward and 16 reverse gears and two variants of a partial power shift transmission with 20 forward and 20 reverse gears.
The JD 7330 row-crop tractor used the John Deere 6068HRW74 engine. It is a 6.8 L, 6,791 cm2, (414.4 cu·in) six-cylinder turbocharged intercooled diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.0:1. This engine produced 152.2 PS (111.9 kW; 150.0 HP) at 2,100 rpm of output power and 687.5 N·m (70.1 kg·m, 506.7 ft·lb) at 1,500 rpm of torque.
The JD 7330 is equipped with hydrostatic power steering, differential hydraulic wet disc brakes, two-post Roll-Gard ROPS or cab (optional), and 249.8 liters (66 US gal.; 54.9 Imp. gal) fuel tank.
John Deere 7330 Specifications
| General Specifications | |
| Model | John Deere 7330 |
| Length | 4,750 mm (187 in) |
| Width (flange axl) | 1,660 mm (65.4 in) |
| Height |
ROPS: 2,920 mm (115 in) Cab: 2,900 mm (114.2 in) |
| Wheel base | 2,640 mm (103.9 in) |
| Weight (shipping) |
2WD: 4,890 kg (10,781 lbs) 4WD: 5,880 kg (12,963 lbs) |
| Fuel tank capacity | 249.8 liters (66 US gal.; 54.9 Imp. gal) |
| Battery | 12V |
| Cabin type | Two-post Roll-Gard ROPS or Cab (optional) |
| Engine | |
| Engine model | John Deere 6068HRW74 |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 6 |
| Fuel type | Diesel |
| Displacement | 6.8 L, 6,791 cm2, (414.4 cu·in) |
| Bore and stroke | 106.0 mm X 127.0 mm (4.17 in X 5 in) |
| Compression ratio | 17.0:1 |
| Horsepower | 152.2 PS (111.9 kW; 150.0 HP) at 2,100 rpm |
| Torque | 687.5 N·m (70.1 kg·m, 506.7 ft·lb) at 1,500 rpm |
| Starter | Electric |
| Oil capacity: | 19.7 L (20.8 US. qt, 17.3 Imp. qt.) |
| Coolant capacity: | 31.0 L (32.8 US. qt, 27.3 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD or 4×4 MFWD 4WD (optional) |
| Steering type | Hydrostatic power |
| Brakes | Differential hydraulic wet disc |
| Transmission model | John Deere PowrQuad |
| Transmission type | Partial power shift |
| Gears | 16 forward and 16 reverse |
| Speed | Forward: 29.9 kmh (18.6 mph) Reverse: 31.4 kmh (19.5 mph) |
| Transmission oil capacity | 51.9 L (13.7 US. gal, 11.4 Imp. gal.) |
| Transmission model | John Deere PowrQuad |
| Transmission type | Partial power shift |
| Gears | 20 forward and 20 reverse |
| Speed | Forward: 38.8 kmh (24.1 mph) Reverse: kmh (0 mph) |
| Transmission oil capacity | 51.9 L (13.7 US. gal, 11.4 Imp. gal.) |
| Transmission model | John Deere PowrQuad Plus |
| Transmission type | Partial power shift |
| Gears | 20 forward and 20 reverse |
| Speed | Forward: 38.8 kmh (24.1 mph) Reverse: kmh (0 mph) |
| Transmission oil capacity | 51.9 L (13.7 US. gal, 11.4 Imp. gal.) |
| Tires | |
| Front tires | Ag: 10.00-16 (2WD), 14.9-28 (4WD) |
| Rear tires | Ag: 18.4R38 |
| Three-Point Hitch | |
| Category | II or IIIN/II |
| Control type | Position control and electronic lower-link (option |
| Lift capacity (at 610 mm/24 in) |
II: 3,990 kg (8,800 lbs) IIIN/II: 3,720 kg (8,200 lbs) |
| PTO (Power take-off shaft) | |
| Rear PTO type | Independent |
| Rear PTO speed | 540/1000 rpm |
| Hydraulic system | |
| Hydraulic type | constant flow load sensing or closed-center load sensing (optional ROPS) |
| Hydraulic capacity | 51.9 L (13.7 US. gal, 11.4 Imp. gal.) |
| Pressure | 2900 psi (200 bar) |
| Valves | 2 to 4 |
| Pump flow |
21.1 gpm (79.9 lpm) Optional ROPS: 29.0 gpm (109.8 lpm) |
