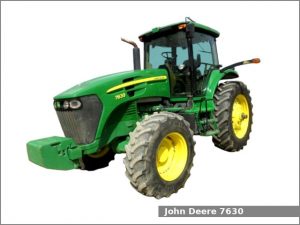

The John Deere 7630 is a 2WD/4WD row-crop tractor from the 7030 series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 2007 to 2011. The John Deere 7630 is equipped with a 6.8 L (414.0 cu·in) six-cylinder diesel engine and one of three transmissions: a partial power shift transmission with 16 forward and 16 reverse gears, a partial power shift transmission with 20 forward and 20 reverse gears or a infinite forward and reverse transmission.
The JD 7630 row-crop tractor used the John Deere engine. It is a 6.8 L, 6,784 cm2, (414.0 cu·in) six-cylinder turbocharged intercooled diesel engine with 106.0 mm (4.17 in) of the cylinder bore and 127.0 mm (5 in) of the piston stroke. The compression ratio rating is 17.0:1. This engine produced 177.5 PS (130.5 kW; 175.0 HP) at 2,100 rpm of output power.
The John Deere 7630 is equipped with power steering, hydraulic wet disc brakes, Cab standard with air-conditioning and 390.0 liters (103 US gal.; 85.8 Imp. gal) fuel tank.
John Deere 7630 Specifications
General Specifications | |
Model | John Deere 7630 |
Length | 5,710 mm (224.8 in) |
Width | 2,430 mm (95.7 in) |
Height (cab) | 3,070 mm (120.9 in) |
Wheel base |
2WD: 2,960 mm (116.5 in) 4WD: 2,860 mm (112.6 in) |
Ground clearance (front axle) |
2WD: 660 mm (26 in) 4WD: 630 mm (24.8 in) |
Weight (shipping) |
2WD: 6,970 kg (15,366 lbs) 4WD: 7,770 kg (17,130 lbs) |
Fuel tank capacity | 390.0 liters (103 US gal.; 85.8 Imp. gal) |
Battery | Two 12V, CCA 925A |
Cabin type | Cab standard with air-conditioning |
Engine | |
Engine model | John Deere |
Engine type | Four-stroke, liquid-cooled, inline |
Cylinders | 6 |
Fuel type | Diesel |
Displacement | 6.8 L, 6,784 cm2, (414.0 cu·in) |
Bore and stroke | 106.0 mm X 127.0 mm (4.17 in X 5 in) |
Compression ratio | 17.0:1 |
Horsepower | 177.5 PS (130.5 kW; 175.0 HP) at 2,100 rpm |
Starter | Electric |
Oil capacity: | 26.0 L (27.5 US. qt, 22.9 Imp. qt.) |
Transmission and chassis | |
Chassis | 4×2 2WD or 4×4 MFWD 4WD |
Steering type | Power |
Brakes | Hydraulic wet disc |
Transmission model | PowrQuad PLUS |
Transmission type | Partial power shift |
Gears | 16 forward and 16 reverse |
Speed | Forward: 29.3 kmh (18.2 mph) Reverse: 30.5 kmh (19 mph) |
Transmission model | AutoQuad PLUS |
Transmission type | Partial power shift |
Gears | 20 forward and 20 reverse |
Speed | Forward: 41.9 kmh (26 mph) Reverse: 43.5 kmh (27 mph) |
Transmission model | Infinitely Variable Transmission (IVT) |
Transmission type | Infinite forward and reverse |
Gears | |
Tires | |
Front tires | Ag: 11.00-16 (2WD), 480/80R42 (4WD) |
Rear tires | Ag: 420/85R28 (2WD), 480/80R42 (4WD) |
Three-Point Hitch | |
Category | III |
Control type | – |
Lift capacity |
4,560 kg (10,055 lbs) Optional: 6,350 kg (14,000 lbs) |
PTO (Power take-off shaft) | |
Rear PTO type | Independent with hydraulic wet disc clutch |
Rear PTO speed | 540/1000 (1.375) |
Hydraulic system | |
Hydraulic type | Closed center load-sensing |
Hydraulic capacity | 107.9 L (28.5 US. gal, 23.7 Imp. gal.) |
Pressure | 2900 psi (200.0 bar) |
Valves | 2 to 7 |
SCV flow | 30.0 gpm (113.6 lpm) |
Total flow |
32.0 gpm (121.1 lpm) Optional: 45.0 gpm (170.3 lpm) |
