John Deere 8200

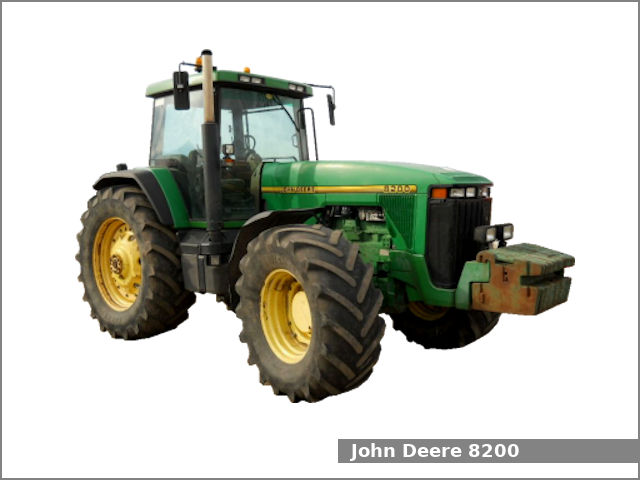

John Deere 8200The John Deere 8200 is a 2WD or 4WD row-crop tractor from the 8000/8000T series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 1995 to 1999.

The John Deere 8200 is equipped with one of two engines: a 7.6 L (466.0 cu·in) six-cylinder diesel engine or a 8.1 L (496.0 cu·in) two-cylinder diesel engine and a full power shift transmission with 16 forward and 4 reverse gears and hydraulic wet disc clutch.

The tractor could be equipped with the following engines:

  • John Deere diesel engine (1995-1996). It is a 7.6 L, 7,636 cm2, (466.0 cu·in) six-cylinder turbocharged diesel engine with 116.0 mm (4.57 in) of the cylinder bore and 121.0 mm (4.76 in) of the piston stroke. The compression ratio rating is 15.1:1. This engine produced 182.5 PS (134.2 kW; 180.0 HP) at 2,200 rpm of output power.
  • John Deere diesel engine (1997-1999). It is a 8.1 L, 8,128 cm2, (496.0 cu·in) two-cylinder turbocharged diesel engine. The cylinder bore is 116.0 mm (4.57 in) and the piston stroke is 129.0 mm (5.08 in). This engine produced 182.5 PS (134.2 kW; 180.0 HP) at 2,200 rpm of output power.

The JD 8200 is equipped with hydrostatic power steering, differential hydraulic wet disc brakes, CommandView cab (standard) and 511.0 liters (135 US gal.; 112.4 Imp. gal) fuel tank.

John Deere 8200 Specifications

General Specifications
ModelJohn Deere 8200
Length5,240 mm (206.3 in)
Width
Height3,050 mm (120.1 in)
Wheel base 2WD: 3,110 mm (122.4 in)
4WD: 2,940 mm (115.7 in)
Ground clearance 2WD: 800 mm (31.5 in)
4WD: 580 mm (22.8 in)
Weight (shipping) 2WD: 7,465 kg (16,457 lbs)
4WD: 8,120 kg (17,902 lbs)
Fuel tank capacity511.0 liters (135 US gal.; 112.4 Imp. gal)
BatteryTwo 12V, CCA 1850A
Cabin typeCommandView Cab (standard)
Engine
Engine modelJohn Deere
Engine typeFour-stroke, liquid-cooled, inline
Cylinders6
Fuel typeDiesel
Displacement7.6 L, 7,636 cm2, (466.0 cu·in)
Bore and stroke116.0 mm X 121.0 mm (4.57 in X 4.76 in)
Compression ratio15.1:1
Horsepower182.5 PS (134.2 kW; 180.0 HP) at 2,200 rpm
StarterElectric
Oil capacity:23.5 L (24.8 US. qt, 20.7 Imp. qt.)
Coolant capacity:27.3 L (28.8 US. qt, 24 Imp. qt.)
Engine
Engine modelJohn Deere
Engine typeFour-stroke, liquid-cooled, inline
Cylinders2
Fuel typeDiesel
Displacement8.1 L, 8,128 cm2, (496.0 cu·in)
Bore and stroke116.0 mm X 129.0 mm (4.57 in X 5.08 in)
Horsepower182.5 PS (134.2 kW; 180 HP) at 2,200 rpm
StarterElectric
Oil capacity:28.0 L (29.6 US. qt, 24.6 Imp. qt.)
Coolant capacity:28.4 L (30 US. qt, 25 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD or 4×4 MFWD 4WD
Steering typeHydrostatic power
BrakesDifferential hydraulic wet disc
Final driveInboard planetary
Differential lockElectro-hydraulic
Transmission modelJohn Deere PowerShift
Transmission typeFull power shift with hydraulic wet disc clutch
Gears16 forward and 4 reverse
Speed Forward: 34.0 kmh (21.1 mph) Reverse: 10.4 kmh (6.5 mph)
Transmission oil capacity140.1 L (37 US. gal, 30.8 Imp. gal.)
Tires
Front tires Ag: 11.00-24
Rear tires Ag: 18.4R46
Three-Point Hitch
CategoryIII/IIIN
Control typeElectro-hydraulic draft sensing
Lift capacity (at ends)4,720 kg (10,410 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO speed1000, 540/1000 rpm
Hydraulic system
Hydraulic typeClosed center pressure-flow compensated (PFC)
Hydraulic capacity140.0 L (37 US. gal, 30.8 Imp. gal.)
Pressure2900 psi (200 bar)
Valves3 to 5
SCV flow30.0 gpm (113.6 lpm)
