John Deere 8210

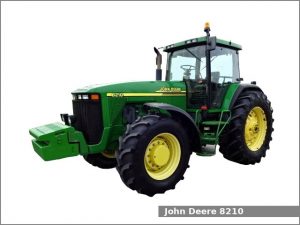

John Deere 8210The John Deere 8210 is a 2WD/4WD row-crop tractor from the 8000 Ten series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 1999 to 2002. The John Deere 8210 is equipped with a 8.1 L (496.0 cu·in) six-cylinder diesel engine and a power shift transmission with 16 forward and 4 reverse gears.

The JD 8210 row-crop tractor used the John Deere engine. It is a 8.1 L, 8,128 cm2, (496.0 cu·in) six-cylinder turbocharged aftercooled diesel engine with 116.0 mm (4.57 in) of the cylinder bore and 129.0 mm (5.08 in) of the piston stroke. The compression ratio rating is 16.5:1. This engine produced 187.7 PS (138.0 kW; 185.0 HP) at 2,200 rpm of PTO output power and 904.5 N·m (92.2 kg·m, 666.6 ft·lb) of torque.

The John Deere 8210 is equipped with power steering, disc brakes, cab (standard) and 511.0 liters (135 US gal.; 112.4 Imp. gal) fuel tank.

John Deere 8210 Specifications

General Specifications
Model John Deere 8210
Length
Width
Height
Wheel base 2,960 mm (116.5 in)
Ground clearance 580 mm (22.8 in)
Weight 8,118 kg (17,897 lbs)
Fuel tank capacity 511.0 liters (135 US gal.; 112.4 Imp. gal)
Battery Two 12V, CCA 925A
Cabin type Cab (standard)
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 8.1 L, 8,128 cm2, (496.0 cu·in)
Bore and stroke 116.0 mm X 129.0 mm (4.57 in X 5.08 in)
Compression ratio 16.5:1
Horsepower 187.7 PS (138.0 kW; 185.1 HP) at 2,200 rpm
Torque 904.5 N·m (92.2 kg·m, 666.6 ft·lb)
Starter Electric
Oil capacity: 28.0 L (29.6 US. qt, 24.6 Imp. qt.)
Coolant capacity: 34.0 L (35.9 US. qt, 29.9 Imp. qt.)
Transmission and chassis
Chassis 4×2 2WD or 4×4 MFWD 4WD (optional)
Steering type Power
Brakes Disc
Transmission model PowerShift
Transmission type Power shift
Gears 16 forward and 4 reverse
Speed Forward: 38.1 kmh (23.7 mph) Reverse: 10.6 kmh (6.6 mph)
Tires
Front tires Ag: 16.9R30
Rear tires Ag: 18.4R46
Three-Point Hitch
Category III, IIIN
Control type
Lift capacity 4,717 kg (10,400 lbs)
Optional: 6,425 kg (14,165 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 540, 540/1000
Hydraulic system
Hydraulic type Closed center pressure flow compensated (PFC)
Valves 3 to 5
Pump flow 30.0 gpm (113.6 lpm)
