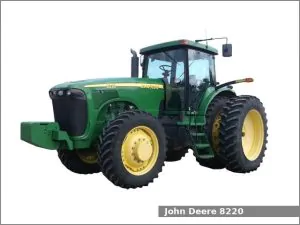

The John Deere 8220 is a 2WD or 4WD row-crop tractor from the 8020 series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 2002 to 2005. The John Deere 8220 is equipped with a 8.1 L (496.0 cu·in) six-cylinder diesel engine and a full power shift transmission with 16 forward and 4 reverse gears.
The JD 8220 row-crop tractor used the John Deere engine. It is a 8.1 L, 8,128 cm2, (496.0 cu·in) six-cylinder turbocharged diesel engine with 116.0 mm (4.57 in) of the cylinder bore and 129.0 mm (5.08 in) of the piston stroke. The compression ratio rating is 16.5:1. This engine produced 228.2 PS (167.8 kW; 225.0 HP) at 2,200 rpm of output power.
The John Deere 8220 is equipped with hydrostatic power steering, hydraulic wet disc brakes, cab (standard) and 511.0 liters (135 US gal.; 112.4 Imp. gal) fuel tank.
John Deere 8220 Specifications
General Specifications | |
Model | John Deere 8220 |
Length | 5,330 mm (209.8 in) Long frame: 5,380 mm (211.8 in) |
Width | – |
Height (cab) | 3,050 mm (120.1 in) |
Wheel base |
2WD: 3,130 mm (123.2 in) 4WD: 2,960 mm (116.5 in) |
Weight | – |
Fuel tank capacity |
511.0 liters (135.0 US gal.; 112.4 Imp. gal) Optional: 605.6 liters (160.0 US gal.; 133.2 Imp. gal) |
Battery | Two 12V, CCA 925A |
Cabin type | Cab (standard) |
Engine | |
Engine model | John Deere |
Engine type | Four-stroke, liquid-cooled, inline |
Cylinders | 6 |
Fuel type | Diesel |
Displacement | 8.1 L, 8,128 cm2, (496.0 cu·in) |
Bore and stroke | 116.0 mm X 129.0 mm (4.57 in X 5.08 in) |
Compression ratio | 16.5:1 |
Horsepower | 228.2 PS (167.8 kW; 225.0 HP) at 2,200 rpm |
Starter | Electric |
Oil capacity: | 23.5 L (24.8 US. qt, 20.7 Imp. qt.) |
Coolant capacity: | 34.0 L (35.9 US. qt, 29.9 Imp. qt.) |
Transmission and chassis | |
Chassis | 4×2 2WD or 4×4 MFWD 4WD |
Steering type | Hydrostatic power |
Brakes | Hydraulic wet disc |
Transmission model | John Deere PowerShift |
Transmission type | Full power shift with hydraulic wet disc clutch |
Gears | 16 forward and 4 reverse |
Speed | Forward: 39.9 kmh (24.8 mph) Reverse: 10.9 kmh (6.8 mph) |
Transmission oil capacity |
140.1 L (37 US. gal, 30.8 Imp. gal.) ILS: 149.9 L (39.6 US. gal, 33 Imp. gal.) |
Tires | |
Front tires | Ag: 11.00-24 (2WD), 16.9R30 (4WD) |
Rear tires | Ag: 18.4R46 |
Three-Point Hitch | |
Category | III/IIIN |
Control type | – |
Lift capacity (at ends) |
5,580 kg (12,300 lbs) 6,885 kg (15,180 lbs) |
Front Hitch | |
Category | IIIN |
Lift capacity | 4,900 kg (11,000 lbs) |
PTO (Power take-off shaft) | |
Rear PTO type | Independent with electro-hydraulic wet disc clutch |
Rear PTO speed | 1000 or 540/1000 rpm |
Hydraulic system | |
Hydraulic type | Closed center pressure-flow compensated (PFC) |
Hydraulic capacity |
140.1 L (37 US. gal, 30.8 Imp. gal.) ILS: 149.9 L (39.6 US. gal, 33 Imp. gal.) |
Pressure | 2900 psi (199.9 bar) |
Valves | 5 |
SCV flow | 30.0 gpm (113.6 lpm) |
Total flow |
33.5 gpm (126.8 lpm) 42.5 gpm (160.9 lpm) |
