John Deere 8230

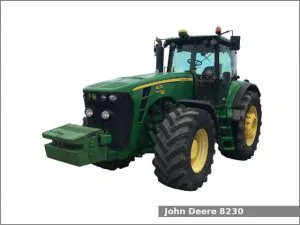

John Deere 8230The John Deere 8230 is a 4WD row-crop tractor from the 8030 series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 2006 to 2009. The John Deere 8230 is equipped with a 9.0 L (548.0 cu·in) six-cylinder diesel engine and one of two transmissions: a full power shift with hydraulic wet disc clutch transmission with 16 forward and 4 reverse gears or a infinitely variable transmission (IVT) transmission with infinite forward and reverse gears.

The JD 8230 row-crop tractor used the John Deere PowerTech engine. It is a 9.0 L, 8,980 cm2, (548.0 cu·in) six-cylinder turbocharged diesel engine with 118.0 mm (4.65 in) of the cylinder bore and 136.0 mm (5.35 in) of the piston stroke. The compression ratio rating is 16.3:1. This engine produced 248.5 PS (182.7 kW; 245.0 HP) at 2,100 rpm of output power.

The John Deere 8230 is equipped with power steering, wet disc brakes, CommandView cab (standard) and 681.3 liters (180.0 US gal.; 150.0 Imp. gal) fuel tank.

John Deere 8230 Specifications

General Specifications
Model John Deere 8230
Length 5,560 mm (218.9 in)
Width
Height 3,120 mm (122.8 in)
Wheel base 3,020 mm (118.9 in)
Ground clearance 440 mm (17.3 in)
Weight 10,770 kg (23,744 lbs)
ILS: 11,405 kg (25,144 lbs)
Fuel tank capacity 681.3 liters (180 US gal.; 149.9 Imp. gal)
Battery Two 12V, CCA 925A
Cabin type CommandView cab (standard)
Engine
Engine model John Deere PowerTech
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 9.0 L, 8,980 cm2, (548.0 cu·in)
Bore and stroke 118.0 mm X 136.0 mm (4.65 in X 5.35 in)
Compression ratio 16.3:1
Horsepower 248.5 PS (182.7 kW; 245 HP) at 2,100 rpm
Starter Electric
Oil capacity: 24.1 L (25.5 US. qt, 21.2 Imp. qt.)
Coolant capacity: 40.0 L (42.3 US. qt, 35.2 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Power
Brakes Wet disc
Transmission model John Deere PowerShift
Transmission type Full power shift with hydraulic wet disc clutch
Gears 16 forward and 4 reverse
Speed Forward: 40.1 kmh (25.0 mph) Reverse: 16.1 kmh (10.0 mph)
Transmission oil capacity 151.4 L (40 US. gal, 33.3 Imp. gal.)
Transmission model
Transmission type Infinitely Variable Transmission (IVT)
Gears Infinite forward and reverse
Speed Forward: 50.0 kmh (31.1 mph)
Tires
Front tires Ag: –
Rear tires Ag: –
Three-Point Hitch
Category III/IIIN or IVN/III (optional)
Control type
Lift capacity (at ends) 5,624 kg (12,400 lbs)
Optional: 6,895 kg (15,200 lbs)
Optional: 7,850 kg (17,300 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 1000 or 540/1000 (optional)
Hydraulic system
Hydraulic type Closed center PFC
Hydraulic capacity 36.0 L (9.5 US. gal, 7.9 Imp. gal.)
Pressure 2100 psi (144.8 bar)
Valves 3 to 5
Pump flow 31.7 gpm (120 lpm)
Total flow 44.0 gpm (166.6 lpm)
60.0 gpm (227.1 lpm)
