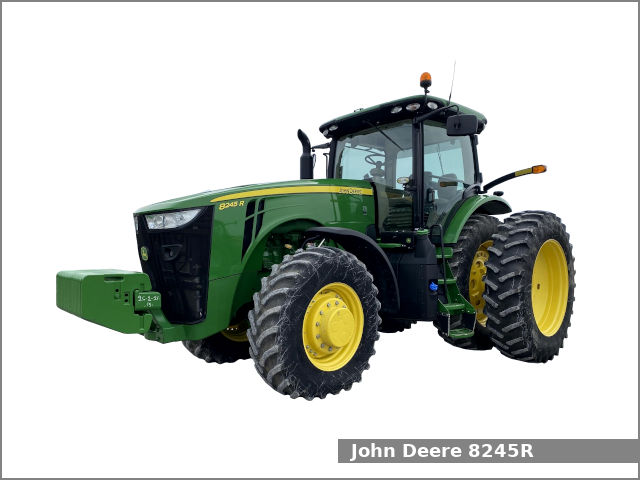

John Deere 8245R (2014-2019)

John Deere 8245RThe John Deere 8245R is a 4WD row-crop tractor from the 8R series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 2014 to 2019. The JD 8245R is equipped with a 9.0 L (548.0 cu·in) six-cylinder diesel engine and one of two transmissions: a full power shift transmission with 16 forward and 4 reverse gears or a infinitely variable transmission (IVT) transmission with infinite forward and reverse gears.

The JD 8245R row-crop tractor used the John Deere PowerTech PSS engine. It is a 9.0 L, 8,980 cm2, (548.0 cu·in) six-cylinder turbocharged aftercooled diesel engine with 118.0 mm (4.65 in) of the cylinder bore and 136.0 mm (5.35 in) of the piston stroke. The compression ratio rating is 16.0:1. This engine produced 248.5 PS (182.7 kW; 245.0 HP) at 2,100 rpm of output power.

The John Deere 8245R is equipped with hydrostatic power steering, hydraulic wet disc brakes, CommandView III cab (standard) with air-conditioning and 645.0 liters (170.4 US gal.; 141.9 Imp. gal) fuel tank.

John Deere 8245R Specifications

General Specifications
Model John Deere 8245R
Length 6,220 mm (244.9 in)
Width 3,480 mm (137 in)
Height (cab) 3,280 mm (129.1 in)
Wheel base 1300: 3,080 mm (121.3 in)
1500/ILS: 3,050 mm (120.1 in)
Ground clearance (rear axle) 630 mm (24.8 in)
Weight 12,500 kg (27,558 lbs)
Fuel tank capacity 645.0 liters (170.4 US gal.; 141.9 Imp. gal)
G49 chassis: 685.8 liters (181.2 US gal, 150.9 Imp. gal)
Exhaust fluid (DEF) 25.7 liters (6.8 US gal, 5.7 Imp. gal)
Battery Two 12V, CCA 925A
Cabin type CommandView III cab (standard) with air-conditioning
Engine model John Deere PowerTech PSS
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 9.0 L, 8,980 cm2, (548.0 cu·in)
Bore and stroke 118.0 mm X 136.0 mm (4.65 in X 5.35 in)
Compression ratio 16.0:1
Horsepower 248.5 PS (182.7 kW; 245 HP) at 2,100 rpm
Starter Electric
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power
Brakes Hydraulic wet disc
Final drive Inboard planetary
Differential lock Hydraulic rear (standard)
Hydraulic front (with 1500 and ILS axles)
Transmission model John Deere PowerShift
Transmission type Full power shift
Gears 16 forward and 4 reverse
Transmission model John Deere AutoPowr
Transmission type Infinitely variable transmission (IVT)
Gears Infinite forward and reverse
Front tires Ag: 380/80R38
Rear tires Ag: 480/80R50
Three-Point Hitch
Category III/IIIN or IVN/III
Control type
Lift capacity 6,350 kg (14,000 lbs)
Optional: 8,390 kg (18,500 lbs)
IVN: 9,070 kg (20,000 lbs)
Front hitch (optional)
Lift capacity 5,195 kg (11,450 lbs)
Category III
Optional: IV
Optional: IV Heavy-Duty
PTO (Power take-off shaft)
Front PTO type Independent (optional)
Front PTO speed 1000 (1.75)
1000 (1.375)
Rear PTO type Independent
Rear PTO speed 1000 (1.75)
1000/1000E (1.75)
540/1000 (1.375)
Hydraulic system
Hydraulic type Closed-center load sensing pressure flow compensated
Hydraulic capacity 40.1 L (10.6 US. gal, 8.8 Imp. gal.)
Optional: 90.1 liters (23.8 US gal, 19.8 Imp. gal)
Valves Rear: 4 to 6,
Front: 0 to 2
Pump flow 60.0 gpm (227.1 lpm)
Optional: 85.0 gpm (321.8 lpm)
SCV flow 35.0 gpm (132.5 lpm)
Optional: 42.0 gpm (159.0 lpm)
