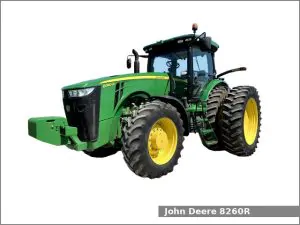

John Deere 8260R

John Deere 8260RThe John Deere 8260R is a 4WD row-crop tractor from the 8R series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 2011 to 2013. The John Deere 8260R is equipped with a 9.0 L (548.0 cu·in) six-cylinder diesel engine and one of two transmissions: a full power shift transmission with 16 forward and 4 reverse gears or a infinitely variable transmission (IVT) transmission with infinite forward and reverse gears.

The JD 8260R row-crop tractor used the John Deere PowerTech PSX engine. It is a 9.0 L, 8,980 cm2, (548.0 cu·in) six-cylinder, dual turbocharged diesel engine with 118.0 mm (4.65 in) of the cylinder bore and 136.0 mm (5.35 in) of the piston stroke. The compression ratio rating is 16.0:1. This engine produced 263.7 PS (193.9 kW; 260.0 HP) at 2,100 rpm of output power.

The John Deere 8260R is equipped with hydrostatic power or active command steering (optional) steering, differential hydraulic wet disc brakes, CommandView II cab (standard) and 695.0 liters (183.6 US gal.; 152.9 Imp. gal) fuel tank.

John Deere 8260R Specifications

General Specifications
Model John Deere 8260R
Length 6,190 mm (243.7 in)
Width Axle: 2,430 mm (95.7 in)
Long axle: 3,000 mm (118.1 in)
Height (cab) 3,520 mm (138.6 in)
Wheel base 1300 MFWD: 3,050 mm (120.1 in)
1500/ILS: 3,020 mm (118.9 in)
Ground clearance (rear axle) 630 mm (24.8 in)
Weight (operating) 12,345 kg (27,216 lbs)
ILS: 13,720 kg (30,247 lbs)
Fuel tank capacity 695.0 liters (183.6 US gal.; 152.9 Imp. gal)
Battery Two 12V, CCA 925A
Cabin type CommandView II cab (standard)
Engine
Engine model John Deere PowerTech PSX
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 9.0 L, 8,980 cm2, (548.0 cu·in)
Bore and stroke 118.0 mm X 136.0 mm (4.65 in X 5.35 in)
Compression ratio 16.0:1
Horsepower 263.7 PS (193.9 kW; 260.0 HP) at 2,100 rpm
Starter Electric
Oil capacity: 1300 axle: 25.0 L (26.4 US. qt, 22.0 Imp. qt.)
1500/ILS axle: 27.9 L (29.5 US. qt, 24.5 Imp. qt.)
Coolant capacity: 41.0 L (43.3 US. qt, 36.1 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power or Active Command steering (optional)
Brakes Differential hydraulic wet disc
Differential lock hydraulic rear lock or front lock on 1500 and ILS front axles
Transmission model John Deere Automatic PowerShift
Transmission type Full power shift
Gears 16 forward and 4 reverse
Speed Forward: 42.2 kmh (26.2 mph) Reverse: 15.1 kmh (9.4 mph)
Transmission model John Deere AutoPowr
Transmission type Infinitely Variable Transmission (IVT)
Gears Infinite forward and reverse
Speed Forward: 50.0 kmh (31.1 mph) Reverse: kmh (0 mph)
Tires
Front tires Ag: 420/90R30
Rear tires Ag: 480/80R46
Three-Point Hitch
Category III/IIIN or IVN/III (optional)
Control type
Lift capacity (at 610 mm/24 in) 2011:
III/IIIN: 6,030 kg (13,300 lbs)
III/IIIN: 7,850 kg (17,300 lbs)
IVN/III: 8,300 kg (18,300 lbs)

2012:
III/IIIN: 6,170 kg (13,600 lbs)
III/IIIN: 7,985 kg (17,600 lbs)
IVN/III: 8,485 kg (18,700 lbs)

Front Hitch
Category IIIN/II (optional)
Lift capacity (at ends) 3,990 kg (8,800 lbs)
5,195 kg (11,450 lbs)
5,580 kg (12,300 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 1000 (1-3/4), 1000 (1-3/8 optional) or 540 (1-3/8 optional)
Hydraulic system
Hydraulic type Closed center pressure-flow compensated (PFC)
Pressure 2900 psi (199.9 bar)
Valves 3 to 5
Pump flow 35.0 gpm (132.5 lpm)
Total flow 44.0 gpm (166.6 lpm)
60.0 gpm (227.1 lpm)
