John Deere 8335R

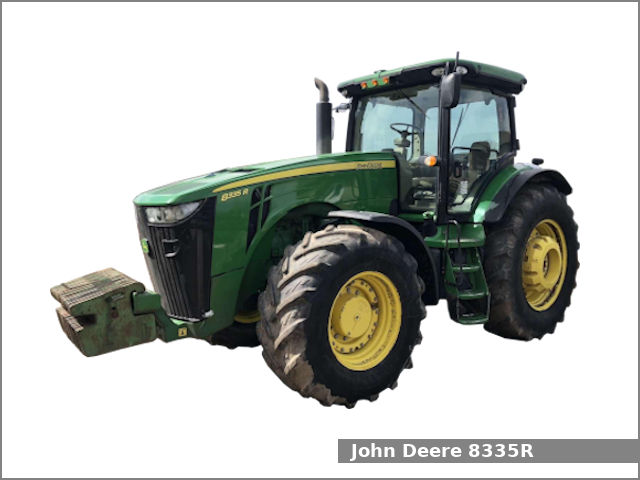

John Deere 8335RThe John Deere 8335R is a 4WD row-crop tractor from the 8R series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 2011 to 2013. The JD 8335R is equipped with a 9.0 L (548.0 cu·in) six-cylinder diesel engine and one of two transmissions: a full power shift transmission with 16 forward and 4 reverse gears or a infinitely variable transmission (IVT) transmission with infinite forward and reverse gears.

The John Deere 8335R row-crop tractor used the John Deere PowerTech PSX engine. It is a 9.0 L, 8,980 cm2, (548.0 cu·in) six-cylinder dual turbocharged diesel engine with 118.0 mm (4.65 in) of the cylinder bore and 136.0 mm (5.35 in) of the piston stroke. The compression ratio rating is 16.0:1. This engine produced 339.7 PS (249.8 kW; 335 HP) at 2,100 rpm of output power.

The JD 8335R is equipped with hydrostatic power or ActiveCommand (optional) steering, differential hydraulic wet disc brakes, CommandView II cab (standard) and 694.9 liters (183.6 US gal.; 152.9 Imp. gal) fuel tank.

John Deere 8335R Specifications

General Specifications
Model John Deere 8335R
Length 6,190 mm (243.7 in)
Width Axle: 2,430 mm (95.7 in)
Long axle: 3,000 mm (118.1 in)
Height (cab) 3,520 mm (138.6 in)
Wheel base 3,020 mm (118.9 in)
Ground clearance (front axle) 1500: 590 mm (23.2 in)
ILS: 510 mm (20.1 in)
Weight (operating) 12,346 kg (27,218 lbs)
ILS: 13,722 kg (30,252 lbs)
Fuel tank capacity 694.9 liters (183.6 US gal.; 152.9 Imp. gal)
Battery Two 12V, CCA 925A
Cabin type CommandView II cab (standard)
Engine
Engine model John Deere PowerTech PSX
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 9.0 L, 8,980 cm2, (548.0 cu·in)
Bore and stroke 118.0 mm X 136.0 mm (4.65 in X 5.35 in)
Compression ratio 16.0:1
Horsepower 339.7 PS (249.8 kW; 335 HP) at 2,100 rpm
Starter Electric
Oil capacity: 27.9 L (29.5 US. qt, 24.5 Imp. qt.)
Coolant capacity: 41.0 L (43.3 US. qt, 36.1 Imp. qt.)
Transmission and chassis
Chassis 4×4 MFWD 4WD
Steering type Hydrostatic power or ActiveCommand Steering (ACS) optional
Brakes Differential hydraulic wet disc
Differential lock Front and rear lock
Transmission model John Deere Automatic PowerShift
Transmission type Full power shift
Gears 16 forward and 4 reverse
Speed Forward: 42.2 kmh (26.2 mph) Reverse: 16.1 kmh (10 mph)
Transmission model John Deere AutoPowr
Transmission type Infinitely variable transmission (IVT)
Gears Infinite forward and reverse
Speed Forward: 49.9 kmh (31.0 mph)
Tires
Front tires Ag: 420/85R34
Rear tires Ag: 480/80R50
Three-Point Hitch
Category IVN/III
Control type
Lift capacity (at 610 mm/24 in) 2011: 8,300 kg (18,300 lbs)
2012: 8,482 kg (18,700 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 1000 (1-3/4)
1000 (1-3/8)
540 (1-3/8)
Hydraulic system
Hydraulic type Closed center pressure-flow compensated
Pressure 200.0 psi (13.8 bar)
Valves Rear: 3 to 5
Pump flow 35.0 gpm (132.5 lpm)
Total flow 60.0 gpm (227.1 lpm)
