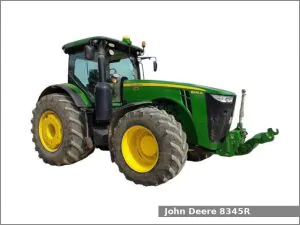

John Deere 8345R

John Deere 8345RThe John Deere 8345R is a 4WD row-crop tractor from the 8R series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 2014 to 2019. The John Deere 8345R is equipped with a 9.0 L (548.0 cu·in) six-cylinder diesel engine and a infinitely variable transmission (IVT) transmission with infinite forward and reverse gears.

The JD 8345R row-crop tractor used the John Deere PowerTech PSS engine. It is a 9.0 L, 8,980 cm2, (548.0 cu·in) six-cylinder turbocharged aftercooled diesel engine with 118.0 mm (4.65 in) of the cylinder bore and 136.0 mm (5.35 in) of the piston stroke. The compression ratio rating is 16.0:1. This engine produced 349.9 PS (257.3 kW; 345.0 HP) at 2,100 rpm of output power.

The John Deere 8345R is equipped with hydrostatic power or active command steering (optional) steering, hydraulic wet disc brakes, CommandView III cab (standard) and 645.0 liters (170.4 US gal.; 141.9 Imp. gal) fuel tank.

John Deere 8345R Specifications

General Specifications
ModelJohn Deere 8345R
Length6,220 mm (244.9 in)
Width (warning lamps)3,480 mm (137 in)
Height (cab)3,280 mm (129.1 in)
Wheelbase3,050 mm (120.1 in)
Ground clearance 1500 axle Group 42 tires: 580 mm (22.8 in)
ILS axle Group 42 tires: 500 mm (19.7 in)
Weight IVT, duals, Cat 4 hitch: 14,828 kg (32,690 lbs)
Fuel tank capacity645.0 liters (170.4 US gal.; 141.9 Imp. gal)
BatteryTwo 12V, CCA 925A
Cabin typeCommandView III cab (standard)
Engine modelJohn Deere PowerTech PSS
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement9.0 L, 8,980 cm2, (548.0 cu·in)
Bore and stroke118.0 mm X 136.0 mm (4.65 in X 5.35 in)
Compression ratio16.0:1
Horsepower349.9 PS (257.3 kW; 345.0 HP) at 2,100 rpm
Transmission and chassis
Chassis4×4 MFWD 4WD
Steering typeHydrostatic power or Active Command steering (optional)
BrakesHydraulic wet disc
Final driveInboard planetary
Differential lock Hydraulic rear (standard)
Hydraulic front with 1500 and ILS axles
Transmission modelJohn Deere AutoPowr
Transmission typeInfinitely variable transmission (IVT)
GearsInfinite forward and reverse
Front tires Ag: 380/80R38
Rear tires Ag: 480/80R50
Three-Point Hitch
Rear ArmsHydraulic center link optional
Lift capacity (at ends) 6,804 kg (15,000 lbs)
Optional: 9,072 kg (20,000 lbs)
Front Hitch
Front HitchOptional
Front lift (at ends)5,193 kg (11,450 lbs)
Drawbar category IV
IV Heavy-Duty (optional)
PTO (Power take-off shaft)
Front PTO typeIndependent (optional)
Front PTO speed 1000 (1.75)
1000 (1.375)
Rear PTO typeIndependent
Rear PTO speed 1000 (1.75)
Optional: 1000/1000E (1.75)
Optional: 540/1000 (1.375)
Hydraulic system
Hydraulic typeClosed-center load sensing pressure flow compensated
Hydraulic capacity 40.1 liters (10.6 US. gal, 8.8 Imp. gal.)
90.1 liters (23.8 US gal, 19.8 Imp. gal)
Valves Rear 4 to 6
Front 0 to 2
Pump flow 60.0 gpm (227.1 lpm)
Optional: 85.0 gpm (321.8 lpm)
SCV flow 35.0 gpm (132.5 lpm)
Optional: 42.0 gpm (159.0 lpm)
