John Deere 8360R

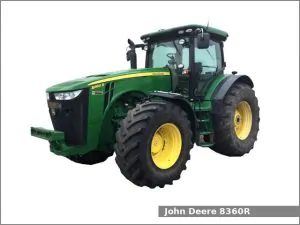

John Deere 8360RThe John Deere 8360R is a 4WD row-crop tractor from the 8R series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 2011 to 2013. The John Deere 8360R is equipped with a 9.0 L (548.0 cu·in) six-cylinder diesel engine and a infinitely variable transmission (IVT) with infinite forward and reverse gears.

The JD 8360R row-crop tractor used the John Deere PowerTech PSX engine. It is a 9.0 L, 8,980 cm2, (548.0 cu·in) six-cylinder dual turbocharged diesel engine with 118.0 mm (4.65 in) of the cylinder bore and 136.0 mm (5.35 in) of the piston stroke. The compression ratio rating is 16.0:1. This engine produced 365.2 PS (268.5 kW; 360.0 HP) at 2,100 rpm of output power.

The Deere 8360R is equipped with hydrostatic power or ActiveCommand (optional) steering, differential hydraulic wet disc brakes, CommandView II cab (standard) and 695.0 liters (183.6 US gal.; 152.9 Imp. gal) fuel tank.

John Deere 8360R Specifications

General Specifications
ModelJohn Deere 8360R
Length6,190 mm (243.7 in)
Width Axle: 2,430 mm (95.7 in)
Long axle: 3,000 mm (118.1 in)
Height (cab)3,520 mm (138.6 in)
Wheel base3,020 mm (118.9 in)
Ground clearance Rear axle: 660 mm (26 in)
Drawbar: 350 mm (13.8 in)
Weight (operating)12,345 kg (27,216 lbs)
ILS: 13,720 kg (30,247 lbs)
Fuel tank capacity695.0 liters (183.6 US gal.; 152.9 Imp. gal)
BatteryTwo 12V, CCA 925A
Cabin typeCommandView II cab (standard)
Engine modelJohn Deere PowerTech PSX
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement9.0 L, 8,980 cm2, (548.0 cu·in)
Bore and stroke118.0 mm X 136.0 mm (4.65 in X 5.35 in)
Compression ratio16.0:1
Horsepower365.2 PS (268.5 kW; 360.0 HP) at 2,100 rpm
Oil capacity:27.9 L (29.5 US. qt, 24.5 Imp. qt.)
Coolant capacity:41.0 L (43.3 US. qt, 36.1 Imp. qt.)
Transmission and chassis
Chassis4×4 MFWD 4WD
Steering typeHydrostatic power or ActiveCommand Steering (optional)
BrakesDifferential hydraulic wet disc
Differential lockFront and rear lock
Transmission modelJohn Deere AutoPowr
Transmission typeInfinitely variable transmission (IVT)
GearsInfinite forward and reverse
Speed Forward: 50.0 kmh (31.1 mph)
Front tires Ag: 420/85R34
Rear tires Ag: 480/80R50
Three-Point Hitch
Control type
Lift capacity (at 610 mm/24 in) 2011: 8,300 kg (18,300 lbs)
2012: 8,480 kg (18,700 lbs)
Front Hitch
CategoryIIIN/II (optional)
Lift capacity 3,990 kg (8,800 lbs)
5,195 kg (11,450 lbs)
5,580 kg (12,300 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent
Rear PTO speed1000 (1-3/4), 1000 (1-3/8), 540 (1-3/8)
Hydraulic system
Hydraulic typeClosed center pressure-flow compensated
Pressure2900 psi (200 bar)
Valves3 to 5
Pump flow35.0 gpm (132.5 lpm)
Total flow60.0 gpm (227.1 lpm)
