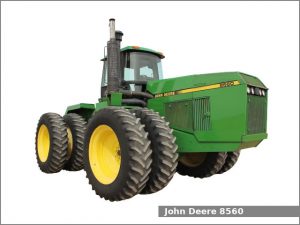

John Deere 8560

John Deere 8560he John Deere 8560 is a four-wheel drive tractor from the 8060 series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 1989 to 1993. The John Deere 8560 is equipped with a 7.6 L (466.0 cu·in) six-cylinder diesel engine and one of two transmissions: a partially synchronized transmission with 12 forward and 3 reverse gears or a partial power shift transmission with 24 forward and 6 reverse gears.

The JD 8560 four-wheel drive used the John Deere engine. It is a 7.6 L, 7,636 cm2, (466.0 cu·in) six-cylinder turbocharged diesel engine with 116.0 mm (4.57 in) of the cylinder bore and 121.0 mm (4.76 in) of the piston stroke. The compression ratio rating is 16.0:1. This engine produced 238.3 PS (175.2 kW; 235.0 HP) at 2,100 rpm of output power.

The John Deere 8560 is equipped with articulated power steering, hydraulic wet disc brakes, Sound-Gard cab and 832.7 liters (220 US gal.; 183.2 Imp. gal) fuel tank.

John Deere 8560 Specifications

General Specifications
Model John Deere 8560
Length 6,830 mm (268.9 in)
Width
Height
Wheel base 3,400 mm (133.9 in)
Weight (operating) 14,549 kg (32,075 lbs)
Fuel tank capacity 832.7 liters (220 US gal.; 183.2 Imp. gal)
Battery Two 12V, CCA 925A
Cabin type Sound-Gard Cab
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 7.6 L, 7,636 cm2, (466.0 cu·in)
Bore and stroke 116.0 mm X 121.0 mm (4.57 in X 4.76 in)
Compression ratio 16.0:1
Horsepower 238.3 PS (175.2 kW; 235.0 HP) at 2,100 rpm
Starter Electric
Coolant capacity: 54.9 L (58 US. qt, 48.3 Imp. qt.)
Transmission and chassis
Chassis 4×4 articulated 4WD
Steering type Articulated power
Brakes Hydraulic wet disc
Transmission model John Deere Syncro
Transmission type Partially synchronized with hydraulic wet disc clutch
Gears 12 forward and 3 reverse
Transmission model John Deere PowrSync
Transmission type Partial power shift with hydraulic wet disc clutch
Gears 24 forward and 6 reverse
Tires
Front tires Ag: 18.4-38
Rear tires Ag: 18.4-38
Three-Point Hitch
Category III
Control type
Lift capacity 6,796 kg (14,985 lbs)
PTO (Power take-off shaft)
Rear PTO type
Rear PTO speed 1000 rpm
Hydraulic system
Hydraulic type Closed-center pressure compensated
Hydraulic capacity 140.0 L (37 US. gal, 30.8 Imp. gal.)
Pump flow 44.8 gpm (169.6 lpm)
SCV flow 33.3 gpm (126.1 lpm)
