John Deere 9100

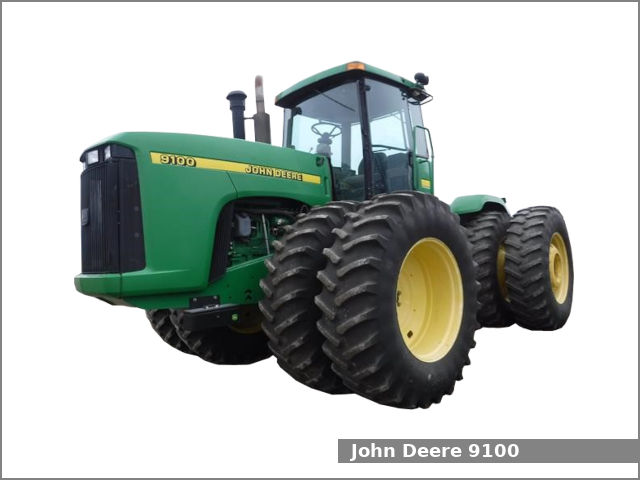

John Deere 9100The John Deere 9100 is a four-wheel drive tractor from the 9000 series. This tractor was manufactured by John Deere in Built in Waterloo, Iowa, USA from 1997 to 2001. The John Deere 9100 is equipped with a 8.1 L (496.0 cu·in) six-cylinder diesel engine and one of three transmissions: a partially synchronized transmission with 12 forward and 3 reverse gears, a partial power shift transmission with 24 forward and 6 reverse gears or a full power shift transmission with 12 forward and 2 reverse gears.

The JD 9100 four-wheel drive used the John Deere engine. It is a 8.1 L, 8,128 cm2, (496.0 cu·in) six-cylinder turbocharged aftercooled diesel engine with 116.0 mm (4.57 in) of the cylinder bore and 129.0 mm (5.08 in) of the piston stroke. The compression ratio rating is 16.5:1. This engine produced 263.7 PS (193.9 kW; 260.0 HP) at 2,100 rpm of output power.

The John Deere 9100 is equipped with hydrostatic power steering, hydraulic wet disc brakes, cab (standard) and 1022.0 liters (270.0 US gal.; 224.8 Imp. gal) fuel tank.

John Deere 9100 Specifications

General Specifications
Model John Deere 9100
Length 6,950 mm (273.6 in)
Width 4,010 mm (157.9 in)
Height (cab) 3,490 mm (137.4 in)
Wheel base 3,500 mm (137.8 in)
Ground clearance 730 mm (28.7 in)
Weight (shipping) 12,873 kg (28,380 lbs)
Fuel tank capacity 1022.0 liters (270 US gal.; 224.8 Imp. gal)
Battery Two 12V, CCA 925A
Cabin type Cab (standard)
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 8.1 L, 8,128 cm2, (496.0 cu·in)
Bore and stroke 116.0 mm X 129.0 mm (4.57 in X 5.08 in)
Compression ratio 16.5:1
Horsepower 263.7 PS (193.9 kW; 260.0 HP) at 2,100 rpm
Starter Electric
Oil type SAE 0W-40
Oil capacity: 30.3 L (32 US. qt, 26.7 Imp. qt.)
Coolant capacity: 53.0 L (56 US. qt, 46.6 Imp. qt.)
Transmission and chassis
Chassis 4×4 articulated 4WD
Steering type Hydrostatic power
Brakes Hydraulic wet disc
Final drive Inboard planetary
Transmission model John Deere Syncro
Transmission type Partially synchronized
Gears 12 forward and 3 reverse
Speed Forward: 29.0 kmh (18 mph) Reverse: 9.2 kmh (5.7 mph)
Transmission model John Deere PowrSync
Transmission type Partial power shift
Gears 24 forward and 6 reverse
Speed Forward: 34.8 kmh (21.6 mph) Reverse: 11.1 kmh (6.9 mph)
Transmission model John Deere PowerShift
Transmission type Full power shift
Gears 12 forward and 2 reverse
Speed Forward: 28.6 kmh (17.8 mph) Reverse: 8.7 kmh (5.4 mph)
Tires
Front tires Ag: 20.8R38
Rear tires Ag: 20.8R38
Three-Point Hitch
Category III
Control type
Lift capacity 6,290 kg (13,870 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 1,000 rpm
Hydraulic system
Hydraulic type Closed center PFC
Hydraulic capacity 98.4 L (26 US. gal, 21.6 Imp. gal.)
Pressure 2900 psi (199.9 bar)
Valves 3 to 5
Pump flow 35.0 gpm (132.5 lpm)
Total flow 44.0 gpm (166.6 lpm)
