John Deere 920

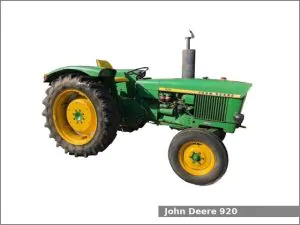

John Deere 920The John Deere 920 is a 2WD utility tractor from the series. This tractor was manufactured by John Deere in Mannheim, Baden-Württemberg, Germany from 1967 to 1975. The John Deere 920 is equipped with a 2.5 L (151.9 cu·in) three-cylinder diesel engine and a gear type transmission with 8 forward and 4 reverse gears.

The JD 920 utility tractor used the John Deere engine. It is a 2.5 L, 2,489 cm2, (151.9 cu·in) three-cylinder natural aspirated diesel engine with 98.0 mm (3.86 in) of the cylinder bore and 110.0 mm (4.33 in) of the piston stroke. This engine produced 40.5 PS (29.8 kW; 40.0 HP) at 2,300 rpm of output power.

John Deere 920 Specifications

General Specifications
ModelJohn Deere 920
Length–
Width–
Height–
Wheel base1,880 mm (74 in)
Weight (shipping)1,973 kg (4,350 lbs)
Fuel tank capacity–
Battery12V
Cabin typeOpen operator station
Engine
Engine modelJohn Deere
Engine typeFour-stroke, liquid-cooled, inline
Cylinders3
Fuel typeDiesel
Displacement2.5 L, 2,489 cm2, (151.9 cu·in)
Bore and stroke98.0 mm X 110.0 mm (3.86 in X 4.33 in)
Horsepower40.5 PS (29.8 kW; 40.0 HP) at 2,300 rpm
StarterElectric
Transmission and chassis
Chassis4×2 2WD
Steering typePower
Brakes
Transmission model
Transmission typeGear type
Gears8 forward and 4 reverse
Tires
Front tires Ag: 6.00-16
Rear tires Ag: 9-32, 9-36, 10-28, 11-28
PTO (Power take-off shaft)
Rear PTO typeLive
Rear PTO speed540 (1.375) or 540/1000 (1.375) rpm
