John Deere 9230

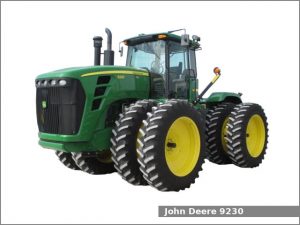

John Deere 9230The John Deere 9230 is a four-wheel drive tractor from the 9030 series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 2007 to 2011. The John Deere 9230 is equipped with a 9.0 L (548.7 cu·in) six-cylinder diesel engine and one of two transmissions: a partial power shift transmission with 24 forward and 6 reverse gears or a full power shift transmission with 18 forward and 6 reverse gears.

The JD 9230 four-wheel drive used the John Deere engine. It is a 9.0 L, 8,991 cm2, (548.7 cu·in) six-cylinder turbocharged aftercooled diesel engine with 118.0 mm (4.65 in) of the cylinder bore and 136.0 mm (5.35 in) of the piston stroke. The compression ratio rating is 16.3:1. This engine produced 329.7 PS (242.4 kW; 325.1 HP) at 2,100 rpm of output power.

The John Deere 9230 is equipped with hydrostatic power steering, hydraulic wet discs brakes, CommandView Cab standard with air-conditioning and 1324.8 liters (350 US gal.; 291.4 Imp. gal) fuel tank.

John Deere 9230 Specifications

General Specifications
Model John Deere 9230
Length 6,850 mm (269.7 in)
Width 3,010 mm (118.5 in)
Height (cab) 3,550 mm (139.8 in)
Wheel base 3,500 mm (137.8 in)
Ground clearance 460 mm (18.1 in)
Weight (operating) 15,653 kg (34,509 lbs)
Fuel tank capacity 1324.8 liters (350 US gal.; 291.4 Imp. gal)
Battery Two 12V, CCA 950A
Cabin type CommandView Cab standard with air-conditioning
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 9.0 L, 8,991 cm2, (548.7 cu·in)
Bore and stroke 118.0 mm X 136.0 mm (4.65 in X 5.35 in)
Compression ratio 16.3:1
Horsepower 329.7 PS (242.4 kW; 325.1 HP) at 2,100 rpm
Starter Electric
Oil type SAE 0W-40, 10W-40
Oil capacity: 31.8 L (33.6 US. qt, 28 Imp. qt.)
Coolant capacity: 47.3 L (50 US. qt, 41.6 Imp. qt.)
Transmission and chassis
Chassis 4×4 articulated 4WD
Steering type Hydrostatic power
Brakes Hydraulic wet discs
Differential lock Hydraulic differential lock (optional)
Transmission model John Deere PowrSync
Transmission type Partial power shift with hydraulic wet disc clutch
Gears 24 forward and 6 reverse
Speed Forward: 34.3 kmh (21.3 mph) Reverse: 10.9 kmh (6.8 mph)
Transmission model John Deere PowerShift
Transmission type Full power shift
Gears 18 forward and 6 reverse
Speed Forward: 38.5 kmh (23.9 mph) Reverse: 12.2 kmh (7.6 mph)
Front tires Ag: 620/70R42
Rear tires Ag: 620/70R42
Three-Point Hitch
Category IVN/III, IVN/IV
Control type
Lift capacity 6940 kg (15,303 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent with electro-hydraulic wet disc clutch (optional)
Rear PTO speed 1000 rpm
Hydraulic system
Hydraulic type Closed-center pressure and flow compensating
Hydraulic capacity 102.2 L (27 US. gal, 22.5 Imp. gal.)
3-point: 106.0 L (28 US. gal, 23.3 Imp. gal.)
High-flow: 75.7 L (20 US. gal, 16.7 Imp. gal.)
High-flow and 3-point: 117.3 L (31 US. gal, 25.8 Imp. gal.)
Pressure 2900 psi (200.0 bar)
Valves 4 to 6
SCV flow 30.0 gpm (113.6 lpm)
PowrSync total flow 44.0 gpm (166.6 lpm)
PowerShift total flow 48.0 gpm (181.7 lpm)
Hi-Flow total flow 78.0 gpm (295.2 lpm)
