John Deere 9330

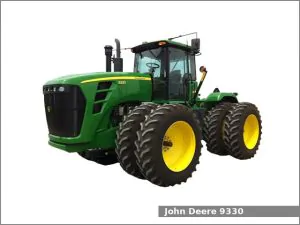

John Deere 9330The John Deere 9330 is a four-wheel drive tractor from the 9030 series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 2007 to 2011. The John Deere 9330 is equipped with a 13.5 L (826.7 cu·in) six-cylinder diesel engine and one of two transmissions: a partial power shift transmission with 24 forward and 6 reverse gears or a full power shift transmission with 18 forward and 6 reverse gears.

The JD 9330 four-wheel drive used the John Deere engine. It is a 13.5 L, 13,547 cm2, (826.7 cu·in) six-cylinder turbocharged aftercooled diesel engine with 132.0 mm (5.2 in) of the cylinder bore and 165.0 mm (6.5 in) of the piston stroke. The compression ratio rating is 16.0:1. This engine produced 380.3 PS (279.6 kW; 375.0 HP) at 2,100 rpm of output power.

The John Deere 9330 is equipped with hydrostatic power steering, hydraulic wet discs brakes, CommandView Cab (standard), and 1324.8 liters (350 US gal.; 291.4 Imp. gal) fuel tank.

John Deere 9330 Specifications

General Specifications
ModelJohn Deere 9330
Length6,850 mm (269.7 in)
Width3,010 mm (118.5 in)
Height (cab)3,550 mm (139.8 in)
Wheel base
Ground clearance (rear axle)730 mm (28.7 in)
Weight (operating)16,835 kg (37,115 lbs)
Fuel tank capacity1324.8 liters (350 US gal.; 291.4 Imp. gal)
BatteryTwo 12V, CCA 950A
Cabin typeCommandView Cab (standard)
Engine
Engine modelJohn Deere
Engine typeFour-stroke, liquid-cooled, inline
Cylinders6
Fuel typeDiesel
Displacement13.5 L, 13,547 cm2, (826.7 cu·in)
Bore and stroke132.0 mm X 165.0 mm (5.2 in X 6.5 in)
Compression ratio16.0:1
Horsepower380.3 PS (279.6 kW; 375.0 HP) at 2,100 rpm
StarterElectric
Oil typeSAE 0W-40
Oil capacity:41.6 L (44 US. qt, 36.6 Imp. qt.)
Coolant capacity:66.2 L (70 US. qt, 58.2 Imp. qt.)
Transmission and chassis
Chassis4×4 articulated 4WD
Steering typeHydrostatic power
BrakesHydraulic wet discs
Differential lockHydraulic differential lock
Transmission modelJohn Deere PowrSync
Transmission typePartial power shift with hydraulic wet disc clutch
Gears24 forward and 6 reverse
Speed Forward: 34.3 kmh (21.3 mph) Reverse: 10.9 kmh (6.8 mph)
Transmission modelJohn Deere PowerShift
Transmission typeFull power shift with electronic wet disc clutch
Gears18 forward and 6 reverse
Speed Forward: 38.5 kmh (23.9 mph) Reverse: 12.2 kmh (7.6 mph)
Tires
Front tires Ag: –
Rear tires Ag: –
Three-Point Hitch
CategoryIVN/III, IVN/IV
Control type
Lift capacity (at 610 mm/24 in)6,940 kg (15,303 lbs)
PTO (Power take-off shaft)
Rear PTO typeIndependent with hydraulic wet disc clutch (optional)
Rear PTO speed1,000 rpm
Hydraulic system
Hydraulic typeClosed-center pressure and flow compensating
Hydraulic capacity 102.2 L (27 US. gal, 22.5 Imp. gal.)
3-point: 106.0 L (28 US. gal, 23.3 Imp. gal.)
High-flow: 75.7 L (20 US. gal, 16.7 Imp. gal.)
High-flow and 3-point: 117.3 L (31 US. gal, 25.8 Imp. gal.)
Pressure2,900 psi (200 bar)
Valves4 to 6
SCV flow30.0 gpm (113.6 lpm)
Total flow PowrSync: 44.0 gpm (166.6 lpm)
PowerShift: 48.0 gpm (181.7 lpm)
Hi-Flow: 78.0 gpm (295.2 lpm)
