John Deere 9430

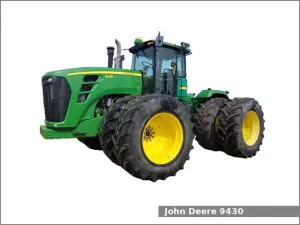

John Deere 9430The John Deere 9430 is a four-wheel drive tractor from the 9030 series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 2007 to 2011. The John Deere 9430 is equipped with a 13.5 L (826.7 cu·in) six-cylinder diesel engine and one of two transmissions: a partial power shift transmission with 24 forward and 6 reverse gears or a full power shift transmission with 18 forward and 6 reverse gears.

The John Deere 9430 four-wheel drive used the John Deere engine. It is a 13.5 L, 13,547 cm2, (826.7 cu·in) six-cylinder turbocharged aftercooled diesel engine with 132.0 mm (5.2 in) of the cylinder bore and 165.0 mm (6.5 in) of the piston stroke. The compression ratio rating is 16.0:1. This engine produced 431.0 PS (316.9 kW; 425.0 HP) at 2,100 rpm of output power.

The JD 9430 is equipped with hydrostatic power steering, hydraulic wet disc brakes, CommandView Cab (standard), and 1325.0 liters (350.0 US gal.; 291.5 Imp. gal) fuel tank.

John Deere 9430 Specifications

General Specifications
Model John Deere 9430
Length 6,850 mm (269.7 in)
Width 3,010 mm (118.5 in)
Height (cab) 3,600 mm (141.7 in)
Wheel base
Ground clearance (rear axle) 780 mm (30.7 in)
Weight (operating) 17,510 kg (38,603 lbs)
Fuel tank capacity 1325 liters (350 US gal.; 291.5 Imp. gal)
Battery Two 12V, CCA 950A
Cabin type CommandView Cab (standard)
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 13.5 L, 13,547 cm2, (826.7 cu·in)
Bore and stroke 132.0 mm X 165.0 mm (5.2 in X 6.5 in)
Compression ratio 16.0:1
Horsepower 431.0 PS (316.9 kW; 425.0 HP) at 2,100 rpm
Starter Electric
Oil capacity: 41.6 L (44 US. qt, 36.6 Imp. qt.)
Coolant capacity: 66.2 L (70 US. qt, 58.2 Imp. qt.)
Transmission and chassis
Chassis 4×4 articulated 4WD
Steering type Hydrostatic power
Brakes Hydraulic wet disc
Differential lock Hydraulic differential lock (optional)
Transmission model John Deere PowrSync
Transmission type Partial power shift with hydraulic wet disc clutch
Gears 24 forward and 6 reverse
Speed Forward: 34.3 kmh (21.3 mph) Reverse: 10.9 kmh (6.8 mph)
Transmission model John Deere PowerShift
Transmission type Full power shift with electronic wet disc clutch
Gears 18 forward and 6 reverse
Speed Forward: 38.5 kmh (23.9 mph) Reverse: 12.2 kmh (7.6 mph)
Tires
Front tires Ag: 710/70-R38, 710/70-R42
Rear tires Ag: 710/70-R38, 710/70-R42
Three-Point Hitch
Category IVN/III, IVN/IV
Control type
Lift capacity (at 610 mm/24 in) 6,940 kg (15,300 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent with electro-hydraulic wet disc clutch (optional)
Rear PTO speed 1,000 rpm
Hydraulic system
Hydraulic type Closed-center pressure and flow compensating
Hydraulic capacity 102.2 L (27.0 US. gal, 22.5 Imp. gal.)
3-point: 106.0 L (28.0 US. gal, 23.3 Imp. gal.)
High-flow: 75.7 L (20.0 US. gal, 16.7 Imp. gal.)
High-flow and 3-point: 117.3 L (31.0 US. gal, 25.8 Imp. gal.)
Pressure 2900 psi (200 bar)
Valves 4 to 6
SCV flow 30.0 gpm (113.6 lpm)
Total flow PowrSync: 44.0 gpm (166.6 lpm)
PowerShift: 48.0 gpm (181.7 lpm)
Hi-Flow: 78.0 gpm (295.2 lpm)
