John Deere 9430T

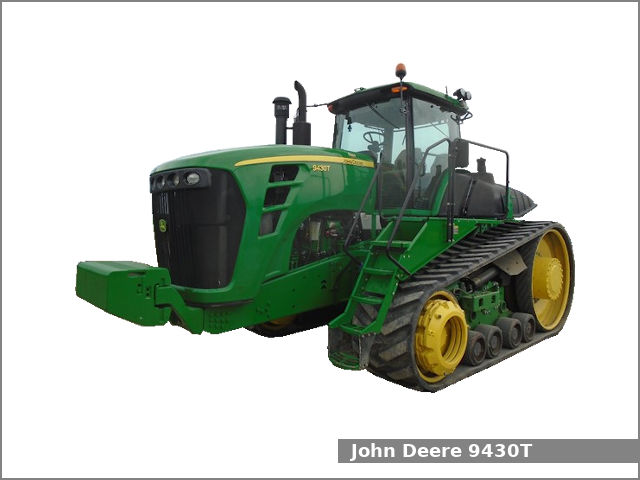

John Deere 9430TThe John Deere 9430T is an agricultural crawler from the 9030 series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 2007 to 2011. The John Deere 9430T is equipped with a 13.5 L (823.0 cu·in) six-cylinder diesel engine and a full power shift transmission with 18 forward and 6 reverse gears and hydraulic wet disc clutch.

The JD 9430T agricultural crawler used the John Deere PowerTech Plus engine. It is a 13.5 L, 13,487 cm2, (823.0 cu·in) six-cylinder turbocharged aftercooled diesel engine with 132.0 mm (5.2 in) of the cylinder bore and 165.0 mm (6.5 in) of the piston stroke. The compression ratio rating is 16.0:1. This engine produced 431 PS (316.9 kW; 425.0 HP) at 2,100 rpm of output power.

The John Deere 9430T is equipped with electro-hydraulic power steering, hydraulic wet disc brakes, Cab (standard) with air-conditioning and 1249.1 liters (330 US gal.; 274.8 Imp. gal) fuel tank.

John Deere 9430T Specifications

General Specifications
Model John Deere 9430T
Length 6,010 mm (236.6 in)
Width 3,450 mm (135.8 in)
Height (cab) 3,400 mm (133.9 in)
Wheel base 2,940 mm (115.7 in)
Ground clearance 400 mm (15.7 in)
Weight (operating) 20,050 kg (44,203 lbs)
Fuel tank capacity 1249.1 liters (330 US gal.; 274.8 Imp. gal)
Battery Three 12V, CCA 925A
Cabin type Cab (standard) with air-conditioning
Engine model John Deere PowerTech Plus
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 13.5 L, 13,487 cm2, (823.0 cu·in)
Bore and stroke 132.0 mm X 165.0 mm (5.2 in X 6.5 in)
Compression ratio 16.0:1
Horsepower 431 PS (316.9 kW; 425 HP) at 2,100 rpm
Starter Electric
Oil capacity: 41.6 L (44 US. qt, 36.6 Imp. qt.)
Coolant capacity: 53.0 L (56 US. qt, 46.6 Imp. qt.)
Transmission and chassis
Chassis Crawler
Steering type Electro-hydraulic power
Brakes Hydraulic wet disc
Transmission model John Deere PowerShift
Transmission type Full power shift with hydraulic wet disc clutch
Gears 18 forward and 6 reverse
Speed Forward: 35.1 kmh (21.8 mph) Reverse: 11.1 kmh (6.9 mph)
Transmission oil capacity 227.0 L (60 US. gal, 49.9 Imp. gal.)
Standard 30-inch belt
Optional 36-inch belt
Three-Point Hitch
Category IV/IVN
Control type Position and draft control
Lift capacity (at ends) 6,940 kg (15,300 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent (optional)
Rear PTO speed 1,000 rpm
Hydraulic system
Hydraulic type Closed-center pressure flow compensated (PFC)
Hydraulic capacity 102.2 L (27 US. gal, 22.5 Imp. gal.)
Pressure 2900 psi (199.9 bar)
Pump flow 48.0 gpm (181.7 lpm)
SVC flow 30.0 gpm (113.6 lpm)
