John Deere 9560RT

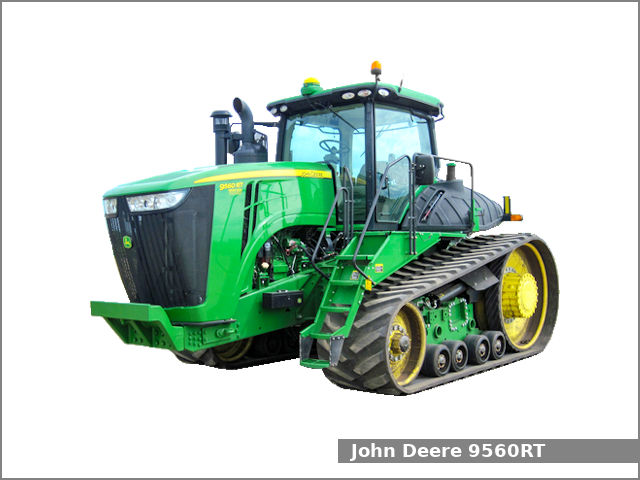

John Deere 9560RTThe John Deere 9560RT is an agricultural crawler from the 9R/RT series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 2012 to 2014. The John Deere 9560RT is equipped with a 13.5 L (826.7 cu·in) six-cylinder diesel engine and a full power shift with hydraulic wet disc clutch transmission with 18 forward and 6 reverse gears.

The JD 9560RT agricultural crawler used the John Deere PowerTech PSX engine. It is a 13.5 L, 13,547 cm2, (826.7 cu·in) six-cylinder natural aspirated diesel engine with 132.0 mm (5.2 in) of the cylinder bore and 165.0 mm (6.5 in) of the piston stroke. The compression ratio rating is 16.0:1. This engine produced 567.9 PS (417.6 kW; 560.0 HP) at 2,100 rpm of output power.

The John Deere 9560RT is equipped with hydrostatic power differential steering, hydraulic wet disc brakes, CommandView II cab and 1286.9 liters (340 US gal.; 283.1 Imp. gal) fuel tank.

John Deere 9560RT Specifications

General Specifications
Model John Deere 9560RT
Length 6,010 mm (236.6 in)
Width 30-inch tracks: 3,450 mm (135.8 in)
36-inch tracks: 3,600 mm (141.7 in)
Height (cab) 3,400 mm (133.9 in)
Wheel base 2,940 mm (115.7 in)
Ground clearance 400 mm (15.7 in)
Weight (operating) 21,330 kg (47,025 lbs)
Fuel tank capacity 1286.9 liters (340 US gal.; 283.1 Imp. gal)
Battery Three 12V, CCA 925A
Cabin type CommandView II cab
Engine
Engine model John Deere PowerTech PSX
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 13.5 L, 13,547 cm2, (826.7 cu·in)
Bore and stroke 132.0 mm X 165.0 mm (5.2 in X 6.5 in)
Compression ratio 16.0:1
Horsepower 567.9 PS (417.6 kW; 560.0 HP) at 2,100 rpm
Starter Electric
Oil capacity: 48.0 L (50.7 US. qt, 42.2 Imp. qt.)
Coolant capacity: 55.1 L (58.2 US. qt, 48.5 Imp. qt.)
Transmission and chassis
Chassis Crawler
Steering type Hydrostatic power differential
Brakes Hydraulic wet disc
Final drive Outboard planetary
Transmission model John Deere PowerShift
Transmission type Full power shift with hydraulic wet disc clutch
Gears 18 forward and 6 reverse
Speed Forward: 39.7 kmh (24.7 mph) Reverse: 12.6 kmh (7.8 mph)
Tires
Front tires Ag: 30-inch track, 36-inch track
Rear tires Ag:
Three-Point Hitch
Category IV/IVN
Control type Electronic draft sensing
Lift capacity (at ends) 6,940 kg (15,300 lbs)
Optional: 9,070 kg (20,000 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent (optional)
Rear PTO speed 1000 rpm
Hydraulic system
Hydraulic type Closed center pressure flow compensated (PFC)
Pressure 2900 psi (200 bar)
Valves 4 to 6
Pump flow 48.0 gpm (181.7 lpm)
High-Flow: 78.0 gpm (295.3 lpm)
SCV flow 37.0 gpm (140.1 lpm)
45.0 gpm (170.3 lpm)
