John Deere 9570RX

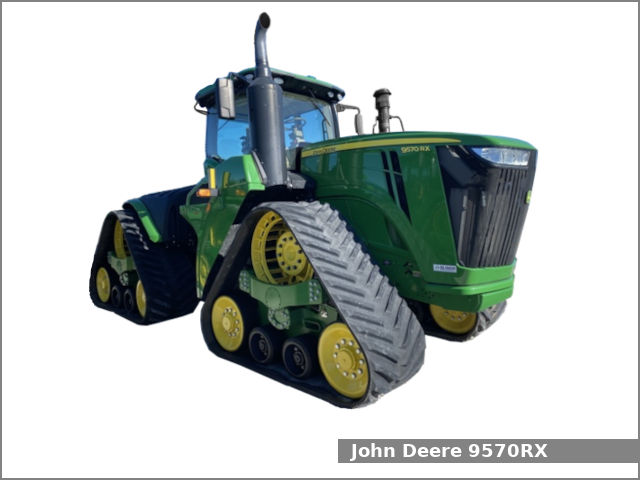

John Deere 9570RXThe John Deere 9570RX is a agricultural crawler from the 9R series. This tractor has been manufactured by John Deere in Waterloo, Iowa, USA from 2016. The John Deere 9570RX is equipped with a 14.9 L (912.0 cu·in) six-cylinder diesel engine and a full power shift transmission with 18 forward and 6 reverse gears.

The JD 9570RX agricultural crawler used the Cummins QSX15 engine. It is a 14.9 L, 14,945 cm2, (912.0 cu·in) six-cylinder variable geometry turbocharged diesel engine with 137.0 mm (5.39 in) of the cylinder bore and 169.0 mm (6.65 in) of the piston stroke. This engine produced 578 PS (425.0 kW; 570.0 HP) of output power.

The John Deere 9570RX is equipped with CommandView III cab standard and 1514.0 liters (400 US gal.; 333 Imp. gal) fuel tank.

John Deere 9570RX Specifications

General Specifications
Model John Deere 9570RX
Length 8,170 mm (321.7 in)
Width 30-in tracks: 2,970 mm (116.9 in)
36-in tracks: 3,120 mm (122.8 in)
Height (exhaust) 4,120 mm (162.2 in)
Wheel base 4,150 mm (163.4 in)
Ground clearance (drawbar) 400 mm (15.7 in)
Weight (shipping) 25,175 kg (55,501 lbs)
Fuel tank capacity 1514.0 liters (400 US gal.; 333 Imp. gal)
Battery Four 12V, CCA 925A
Cabin type CommandView III cab standard
Engine
Engine model Cummins QSX15
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 14.9 L, 14,945 cm2, (912.0 cu·in)
Bore and stroke 137.0 mm X 169.0 mm (5.39 in X 6.65 in)
Horsepower 578 PS (425.0 kW; 570.0 HP)
Starter Electric
Transmission and chassis
Chassis Articulated-crawler
Steering type
Brakes
Transmission model e18 PowerShift
Transmission type Full power shift
Gears 18 forward and 6 reverse
Tracks
Width 760 mm (30 in)
Width 910 mm (36 in)
Three-Point Hitch
Category IV/IVN (optional)
Control type
Lift capacity 6,805 kg (15,000 lbs)
9,070 kg (20,000 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent with electro-hydraulic clutch (optional)
Rear PTO speed 1000 rpm
Hydraulic system
Hydraulic type Closed-center pressure/flow compensated
Valves 4 to 8
Pump flow 58.0 gpm (219.6 lpm)
115.0 gpm (435.3 lpm)
SCV flow 35.0 gpm (132.5 lpm)
42.0 gpm (159.0 lpm)
