John Deere 9620

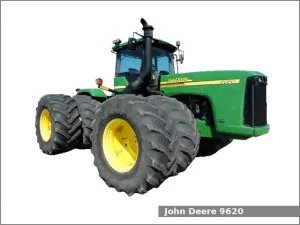

John Deere 9620The John Deere 9620 is a four-wheel drive tractor from the 9020 series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 2004 to 2007. The John Deere 9620 is equipped with a 12.5 L (765.0 cu·in) six-cylinder diesel engine and a full power shift transmission with 18 forward and 6 reverse gears.

The JD 9620 four-wheel drive used the John Deere engine. It is a 12.5 L, 12,536 cm2, (765.0 cu·in) six-cylinder turbocharged diesel engine with 127.0 mm (5 in) of the cylinder bore and 165.0 mm (6.5 in) of the piston stroke. The compression ratio rating is 14.7:1. This engine produced 507.1 PS (372.9 kW; 500.0 HP) at 2,100 rpm of output power.

The John Deere 9620 is equipped with hydrostatic power steering, hydraulic wet disc brakes, CommandView cab (standard) and 1022.0 liters (270.0 US gal.; 224.8 Imp. gal) fuel tank.

John Deere 9620 Specifications

General Specifications
Model John Deere 9620
Length 6,950 mm (273.6 in)
Width 2,930 mm (115.4 in)
Height (cab) 3,490 mm (137.4 in)
Wheel base 3,500 mm (137.8 in)
Ground clearance Front axle: 730 mm (28.7 in)
Drawbar: 430 mm (16.9 in)
Weight (operating) 17,735 kg (39,099 lbs)
Fuel tank capacity 1022.0 liters (270 US gal.; 224.8 Imp. gal)
Battery Three 12V, CCA 925A
Cabin type CommandView cab (standard)
Engine
Engine model John Deere
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 12.5 L, 12,536 cm2, (765.0 cu·in)
Bore and stroke 127.0 mm X 165.0 mm (5 in X 6.5 in)
Compression ratio 14.7:1
Horsepower 507.1 PS (372.9 kW; 500.1 HP) at 2,100 rpm
Torque 1678.7 N·m (171.2 kg·m, 1237.2 ft·lb) at 1,250 rpm
Starter Electric
Oil type SAE 10W-40, 5W-30
Oil capacity: 41.6 L (44 US. qt, 36.6 Imp. qt.)
Transmission and chassis
Chassis 4×4 articulated 4WD
Steering type Hydrostatic power
Brakes Hydraulic wet disc
Transmission model John Deere Powershift
Transmission type Full power shift
Gears 18 forward and 6 reverse
Speed Forward: 40.1 kmh (24.9 mph) Reverse: 12.7 kmh (7.9 mph)
Tires
Front tires Ag: 800/70R38
Rear tires Ag: 800/70R38
Three-Point Hitch
Category III, IV/IVN
Control type
Lift capacity 6,290 kg (13,870 lbs)
Optional: 6,550 kg (14,445 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent
Rear PTO speed 1000 rpm
Hydraulic system
Hydraulic type Closed center pressure/flow compensated
Hydraulic capacity 102.2 L (27.0 US. gal, 22.5 Imp. gal.)
With 3-pt: 106.0 L (28.0 US gal, 23.3 Imp. gal)
Hi-flow: 113.6 L (30.0 US gal, 25.0 Imp. gal)
Hi-flow/3-pt: 117.3 L (31.0 US gal, 25.8 Imp. gal)
Valves 4 or 5
Pump flow 30.0 gpm (113.6 lpm)
Total flow 48.0 gpm (181.7 lpm)
Hi-flow: 78.0 gpm (295.3 lpm)
