John Deere 9620RX

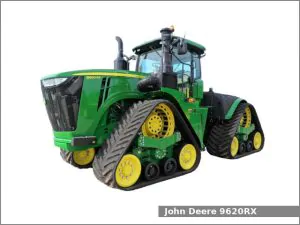

John Deere 9620RXThe John Deere 9620RX is an agricultural crawler from the 9R series. This tractor has been manufactured by John Deere in Waterloo, Iowa, USA since 2016. The John Deere 9620RX is equipped with a 14.9 L (912.0 cu·in) six-cylinder diesel engine and a full power shift transmission with 18 forward and 6 reverse gears.

The John Deere 9620RX agricultural crawler used the Cummins QSX15 engine. It is a 14.9 L, 14,945 cm2, (912.0 cu·in) six-cylinder variable geometry turbocharged diesel engine with 137.0 mm (5.39 in) of the cylinder bore and 169.0 mm (6.65 in) of the piston stroke. This engine produced 628.7 PS (462.3 kW; 620.0 HP) of output power.

John Deere 9620RX Specifications

General Specifications
Model John Deere 9620RX
Length 8,170 mm (321.7 in)
Width 30-inch tracks: 2,970 mm (116.9 in)
36-inch tracks: 312 mm (12.3 in)
Height (exhaust) 4,120 mm (162.2 in)
Wheel base
Ground clearance (drawbar) 400 mm (15.7 in)
Weight (shipping) 25,175 kg (55,501 lbs)
Fuel tank capacity 1515.0 liters (400.2 US gal.; 333.3 Imp. gal)
Battery Four 12V, CCA 925A
Cabin type CommandView III
Engine
Engine model Cummins QSX15
Engine type Four-stroke, liquid-cooled, inline
Cylinders 6
Fuel type Diesel
Displacement 14.9 L, 14,945 cm2, (912.0 cu·in)
Bore and stroke 137.0 mm X 169.0 mm (5.39 in X 6.65 in)
Horsepower 628.7 PS (462.3 kW; 620.0 HP)
Starter Electric
Transmission and chassis
Chassis Articulated-crawler
Steering type
Brakes
Transmission model e18 PowerShift
Transmission type Full power shift
Gears 18 forward and 6 reverse
Tracks
Size 30-inch track
36-inch track
Three-Point Hitch
Category IV/IVN
Control type
Lift capacity 6,805 kg (15,000 lbs)
9,072 kg (20,000 lbs)
PTO (Power take-off shaft)
Rear PTO type Independent with electro-hydraulic clutch
Rear PTO speed 1000 rpm
Hydraulic system
Hydraulic type Closed-center pressure/flow compensated
Valves 4 to 8
Pump flow 58 gpm (219.6 lpm)
115 gpm (435.3 lpm)
SCV flow 35 gpm (132.5 lpm)
42 gpm (159.0 lpm)
ATTENTION! Dear visitors, this site is not a trading platform, an official dealer or a spare parts supplier, so we do not have any price lists, spare parts catalogs, service or owner manuals. We are an information portal and provide the technical specifications.

We try to use verified sources and official documentation, however, differences between sources or errors in entering information may occur. In addition, the characteristics may vary depending on the modification and market. We do not provide advice on technical issues related to the any operation or repair. We do not recommend using provided information for repairing or spare parts ordering, use only official service manuals and spare-parts catalogs.
