John Deere 9630

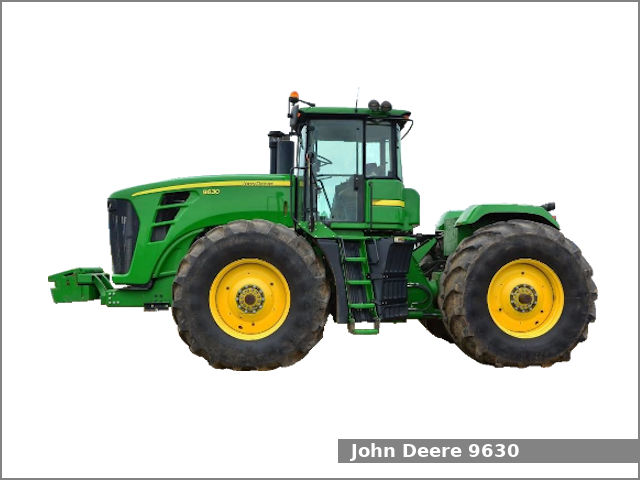

John Deere 9630The John Deere 9630 is a 4WD four-wheel drive tractor from the 9030 series. This tractor was manufactured by John Deere in Waterloo, Iowa, USA from 2007 to 2011. The John Deere 9630 is equipped with a 13.5 L (826.7 cu·in) six-cylinder diesel engine and a full power shift transmission with 18 forward and 6 reverse gears and electronic wet disc clutch.

The JD 9630 four-wheel drive used the John Deere engine. It is a 13.5 L, 13,547 cm2, (826.7 cu·in) six-cylinder turbocharged intercooled diesel engine with 132.0 mm (5.2 in) of the cylinder bore and 165.0 mm (6.5 in) of the piston stroke. The compression ratio rating is 16.0:1. This engine produced 537.5 PS (395.2 kW; 530.0 HP) at 2,100 rpm of output power.

The John Deere 9630 is equipped with hydrostatic power steering, hydraulic wet discs brakes, CommandView Cab (standard), and 395 liters (104.3 US gal.; 86.9 Imp. gal) fuel tank.

John Deere 9630 Specifications

General Specifications
ModelJohn Deere 9630
Length6,850 mm (269.7 in)
Width3,010 mm (118.5 in)
Height (Cab)3,600 mm (141.7 in)
Wheel base3,500 mm (137.8 in)
Weight (operating)17,900 kg (39,463 lbs)
Fuel tank capacity395 liters (104.3 US gal.; 86.9 Imp. gal)
BatteryThree 12V, CCA 925A
Cabin typeCommandView Cab (standard)
Engine modelJohn Deere
Engine typeFour-stroke, liquid-cooled, inline
Fuel typeDiesel
Displacement13.5 L, 13,547 cm2, (826.7 cu·in)
Bore and stroke132.0 mm X 165.0 mm (5.2 in X 6.5 in)
Compression ratio16.0:1
Horsepower537.5 PS (395.2 kW; 530 HP) at 2,100 rpm
Oil capacity:60.0 L (63.4 US. qt, 52.8 Imp. qt.)
Coolant capacity:66.2 L (70 US. qt, 58.2 Imp. qt.)
Transmission and chassis
Chassis4×4 articulated 4WD
Steering typeHydrostatic power
BrakesHydraulic wet discs
Differential lockHydraulic differential lock standard
Transmission modelJohn Deere PowerShift
Transmission typeFull power shift with electronic wet disc clutch
Gears18 forward and 6 reverse
Speed Forward: 40.5 kmh (25.2 mph) Reverse: 12.9 kmh (8 mph)
Front tires Ag: 800/70R38 Duals
Rear tires Ag: 800/70R38 Duals
Three-Point Hitch
Control type
Lift capacity (at 610 mm/24 in)6940 kg (15303 lbs)
Hydraulic system
Hydraulic typeClosed-center pressure and flow compensating
Hydraulic capacity 102.2 L (27.0 US. gal, 22.5 Imp. gal.)
3-point: 106.0 L (28.0 US gal, 23.3 Imp. gal)
High-Flow: 75.7 L (20.0 US gal, 16.7 Imp. gal)
High-Flow and 3-point: 117.0 liters (30.9 US gal, 25.7 Imp. gal)
Pressure2900 psi (199.9 bar)
Valves4 to 6
SCV flow30.0 gpm (113.6 lpm)
Total flow 48.0 gpm (181.7 lpm)
High-Flow: 78.0 gpm (295.3 lpm)
