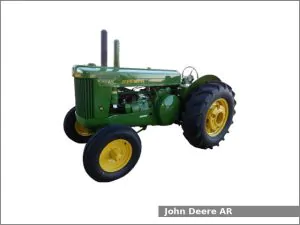

John Deere AR (1950-1953)

John Deere AR (1950-1953)The John Deere AR is a 2WD standard-tread tractor manufactured by John Deere in Waterloo, Iowa, USA from 1935 to 1953.

The John Deere AR is equipped with one of two engines: a 5.3 L (321.0 cu·in) two-cylinder gasoline engine or a 5.3 L (321.0 cu·in) two-cylinder kerosene engine and a unsynchronized gear transmission with 6 forward and 1 reverse gears.

The AR and AO models was the “regular”, or fixed-tread version of the model A.

The tractor could be equipped with the following engines:

  • John Deere. It is a 5.3 L, 5,260 cm2, (321.0 cu·in) two-cylinder natural aspirated gasoline engine with 140.0 mm (5.51 in) of the cylinder bore and 171.0 mm (6.73 in) of the piston stroke. The compression ratio rating is 5.6:1. This engine produced 35.4 PS (26.0 kW; 34.9 HP) at 975 rpm of output power.
  • John Deere. It is a 5.3 L, 5,260 cm2, (321.0 cu·in) two-cylinder natural aspirated kerosene engine. The cylinder bore is 140.0 mm (5.51 in) and the piston stroke is 171.0 mm (6.73 in). The compression ratio rating is 4.5:1. This engine produced 27.5 PS (20.2 kW; 27.1 HP) at 975 rpm of output power.

The JD AR is equipped with manual steering, mechanical shoe brakes, open operator station and 75.7 liters (20 US gal.; 16.7 Imp. gal) fuel tank.

John Deere AR Specifications

General Specifications
ModelJohn Deere AR
Length3,140 mm (123.6 in)
Width AR: 1,840 mm (72.4 in)
AO: 1,920 mm (75.6 in)
Height (hood)1,440 mm (56.7 in)
Wheel base1,920 mm (75.6 in)
Weight (shipping) AR: 2,380 kg (5,247 lbs)
AO: 2,495 kg (5,501 lbs)
Fuel tank capacity75.7 liters (20 US gal.; 16.7 Imp. gal)
BatteryTwo 6V
Cabin typeOpen operator station
Engine
Engine modelJohn Deere
Engine typeFour-stroke, liquid-cooled
Cylinders2
Fuel typeGasoline
Displacement5.3 L, 5,260 cm2, (321.0 cu·in)
Bore and stroke140.0 mm X 171.0 mm (5.51 in X 6.73 in)
Compression ratio5.6:1
Horsepower35.4 PS (26.0 kW; 34.9 HP) at 975 rpm
StarterElectric
Oil capacity:10.4 L (11 US. qt, 9.2 Imp. qt.)
Coolant capacity:33.1 L (35 US. qt, 29.1 Imp. qt.)
Spark plugAC88L
Engine
Engine modelJohn Deere
Engine typeFour-stroke, liquid-cooled
Cylinders2
Fuel typeKerosene
Displacement5.3 L, 5,260 cm2, (321.0 cu·in)
Bore and stroke140.0 mm X 171.0 mm (5.51 in X 6.73 in)
Compression ratio4.5:1
Horsepower27.5 PS (20.2 kW; 27.1 HP) at 975 rpm
StarterElectric
Oil capacity:10.4 L (11 US. qt, 9.2 Imp. qt.)
Coolant capacity:33.1 L (35 US. qt, 29.1 Imp. qt.)
Transmission and chassis
Chassis4×2 2WD
Steering typeManual
BrakesMechanical shoe
Transmission modelJohn Deere
Transmission typeUnsynchronized gear
Gears6 forward and 1 reverse
Speed Forward: 17.7 kmh (11 mph) Reverse: 4.4 kmh (2.7 mph)
Transmission oil capacity30.3 L (8 US. gal, 6.7 Imp. gal.)
Tires
Front tires Ag: 6.00-16, 7.50-16, 6.50-18, 7.50-18
Rear tires Ag: 13-26, 14-26, 15-26
PTO (Power take-off shaft)
Rear PTO typeTransmission
Rear PTO speed540 rpm
Hydraulic system
Hydraulic typePowr-Trol (optional)
Hydraulic capacity7.9 L (2.1 US. gal, 1.7 Imp. gal.)
Pressure930 psi (64.1 bar)
Valves1
Pump flow8.9 gpm (33.7 lpm)
