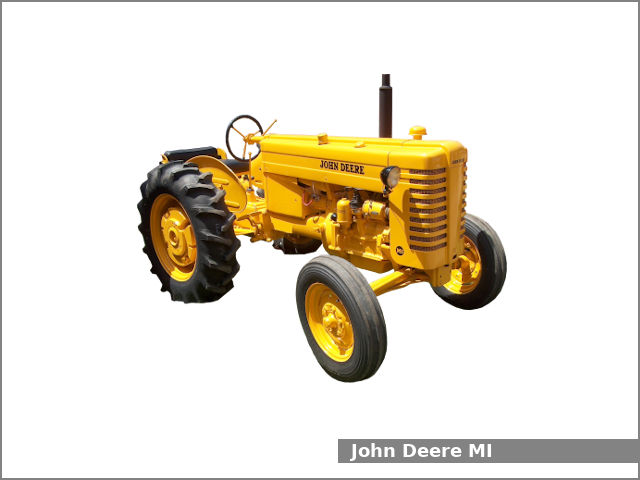

The John Deere MI is a 2WD industrial tractor from the Two-Cylinder Letter series. This tractor was manufactured by John Deere in Dubuque, Iowa, USA from 1949 to 1952. The John Deere MI is equipped with a 1.6 L (100.5 cu·in) two-cylinder gasoline engine and a unsynchronized gear transmission with 4 forward and 1 reverse gears.
The John Deere MI industrial tractor used the John Deere engine. It is a 1.6 L, 1,647 cm2, (100.5 cu·in) two-cylinder natural aspirated gasoline engine with 102.0 mm (4.02 in) of the cylinder bore and 102.0 mm (4.02 in) of the piston stroke. The compression ratio rating is 6.0:1.
The John Deere MI is equipped with manual steering, an open operator station, and 37.9 liters (10 US gal.; 8.3 Imp. gal) fuel tank.
John Deere MI Specifications
| General Specifications | |
| Model | John Deere MI |
| Length | 2,790 mm (109.8 in) |
| Width | 1,570 mm (61.8 in) |
| Height | 1,480 mm (58.3 in) |
| Wheel base | – |
| Weight | 1,360 kg (2,998 lbs) |
| Fuel tank capacity | 37.9 liters (10 US gal.; 8.3 Imp. gal) |
| Battery | 6V |
| Cabin type | Open operator station |
| Engine | |
| Engine model | John Deere |
| Engine type | Four-stroke, liquid-cooled, inline |
| Cylinders | 2 |
| Fuel type | Gasoline |
| Displacement | 1.6 L, 1,647 cm2, (100.5 cu·in) |
| Bore and stroke | 102.0 mm X 102.0 mm (4.02 in X 4.02 in) |
| Compression ratio | 6.0:1 |
| Horsepower | – |
| Starter | Electric |
| Oil capacity: | 4.7 L (5 US. qt, 4.1 Imp. qt.) |
| Coolant capacity: | 13.2 L (13.9 US. qt, 11.6 Imp. qt.) |
| Transmission and chassis | |
| Chassis | 4×2 2WD |
| Steering type | Manual |
| Brakes | – |
| Transmission model | – |
| Transmission type | Unsynchronized gear |
| Gears | 4 forward and 1 reverse |
| Tires | |
| Front tires | Ag: 5.00×15 |
| Rear tires | Ag: 9.00×24 |
